Ecnomic 5030 X Ray Baggage and parcel inspection for shopping malls
Hold X Ray Baggage Scanner Machine , Screening Threat Detection Equipment
Applications:
- Airports,
- Transport terminals,
- Buildings,
- Factories (to find needle in clothing, shoes, bags),
- Courthouses,
- Embassies,
- Military installations,
- Prisons,
- Hotels,
- Schools ,
- Convention centers,
- Security checkpoints,
- Special events location
Competitive Advantage:
| Feature one | Integrated, cost Effective, Turn-Key Security |
| Feature two | Fit for small Baggage and Parcel Security Inspection. |
| Feature three | Increased detection capability |
| Feature four | Friendly interface for ease-of-use |
| Feature five | Reliable performance and uncompromising value |
Specifications:
|
Tunnel Size: |
500(W)*300(H)mm |
|
Conveyor Speed: |
0.22m/s |
|
Conveyor Max Load: |
100kgs |
|
Dose per Inspection: |
<2.9 μGy/h |
|
Resolution: |
<0.101mm Metal Wire |
|
Penetration: |
8mm Steel/Higher penetration 30mm steel/Highest penetration 38mm steel |
|
Film Safety: |
Guarantee ISO1600 Film |
|
X-ray Leakage: |
<0.05 μGy/h (at a distance of 5cm From external housing) |
|
Generate direct: |
Upward |
|
Generate angle: |
80 degree |
|
Anode Voltage: |
80Kv/140Kv/160Kv |
|
Anode power: |
0.4 to 0.5mA |
|
Cooling / Duty Cycle: |
Oil Cooling /100% |
|
X-ray Sensor: |
L-Shaped Photodiode Array (mono-energetic), 12bit Deep |
|
Monitor: |
High Resolution Color, LCD Accord, 17 inch |
|
Image Processing: |
Edge enhancement, image strengthening, image lightening, reducing darkening, image returning, image retrieval. |
|
Image Grey Level: |
4096 |
|
Image Max Resolution: |
1024 * 1280 pixel |
|
Image Processing: |
24bit for processing real time |
|
Image storage: |
Storage 60000 pictures in real time |
|
Zones & Zoom: |
1-9 Image regions, 2, 4, 8, 16 Times Enlarge, Whole screen continuous observation |
|
Operation temperature/Humidity: |
0℃-45℃/20%-95%(non-condensing) |
|
Storage Temperature/Humidity: |
-20℃-60℃/20%-95%(non-condensing) |
|
Operation Power: |
220VAC(±10%)50±3Hz |
|
Power Consumption: |
1.0 KW (max), 0.3KW(working) |
|
Noise: |
<65db |
Company profile:
Security Electronic Equipment Co.,Limited in Shenzhen is a leading security screening manufacturer that provides superior security products, multiple solutions and great service that meets our customers’ most demanding threat detection needs.

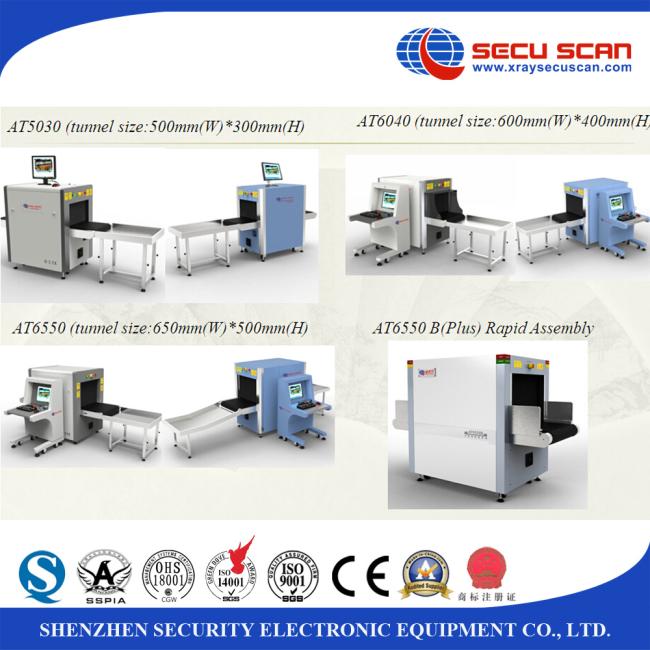

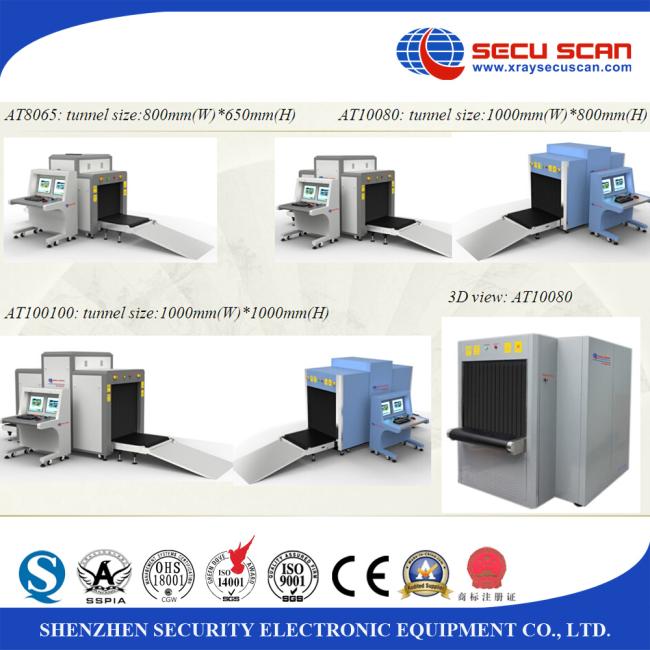

Providing different size and performance x-ray baggage and parcel inspection machine:
