Hua Heng HY-3D Travel Monitoring and Protection Instrument - Industrial Equipment Displacement Monitoring and Limit Protection
Price:
Negotiation
MOQ:
1
Delivery Time:
Negotiable
Brand:
Hua Heng
Product Description
Hua Heng HY-3D Travel Monitoring and Protection Instrument
Advanced industrial equipment displacement monitoring and limit protection system designed for precision measurement and reliable operation in demanding industrial environments.
Key Features
- High-precision displacement monitoring with 0.5 grade accuracy
- Multiple sensor compatibility for various industrial applications
- Dual display options: LED or LCD
- Comprehensive output signals including 4-20mA current and RS485 communication
- Wide operating temperature range: -40℃ to 65℃
- Robust construction for industrial environments
Technical Specifications
| Measurement Range | Configurable based on selected sensor range |
| Measurement Accuracy | 0.5 grade, linear error ≤ ±0.5% |
| Display Method | LED or LCD display |
| Operating Environment | -40℃ to 65℃, relative humidity ≤95% (non-condensing) |
| Power Supply | AC 85V-265V or DC 100V-360V |
Input Signal Compatibility
Supported Sensor Types:

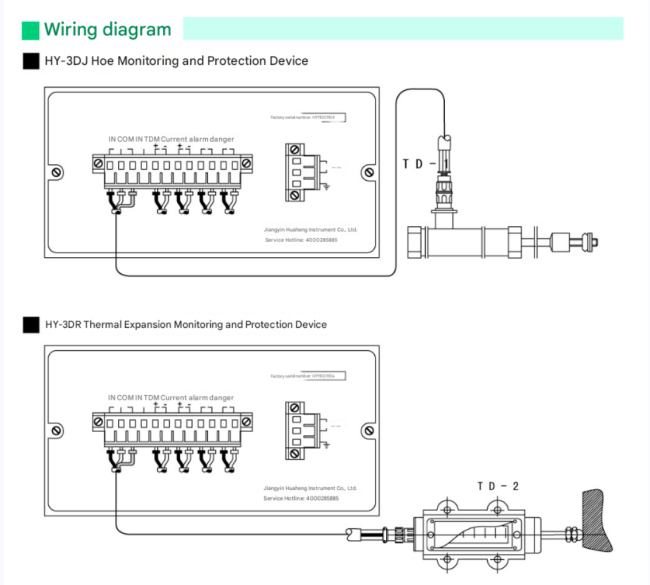

- Hydraulic Actuator: TD-1 hydraulic actuator sensor signal
- Thermal Expansion: TD-2 thermal expansion sensor signal

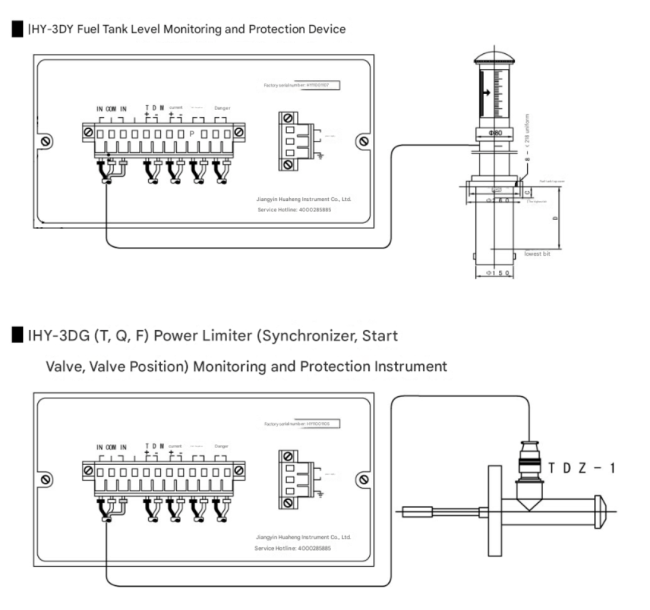

- Oil Tank Level: UT-81 oil tank level sensor signal
- Synchronizer, Valve Position, Power Limiter, Starting Valve: TDZ-1 sensor signal
- Liquid Level: UHZ-54 magnetic flip ball liquid level sensor signal
Output Signals
| Current Output | 4-20mA, load resistance ≤850Ω |
| RS485 Communication | Modbus RTU communication protocol |
| Switch Output | DC 27V/2A or AC250V/5A |
Physical Dimensions & Installation
| External Dimensions | Width 160mm × Height 92mm × Depth 210mm |
| Opening Dimensions | Width (152+0.5mm) × Height (76+0.5mm) |
| Installation Method | Open-hole tray mounting |
