OCL-570 800A 400KW Dry-Type Iron Core Line Reactor for VFD Inverter Input Output Protection
Price:
Negotiation
MOQ:
1
Delivery Time:
Negotiable
Brand:
OEM
Product Description

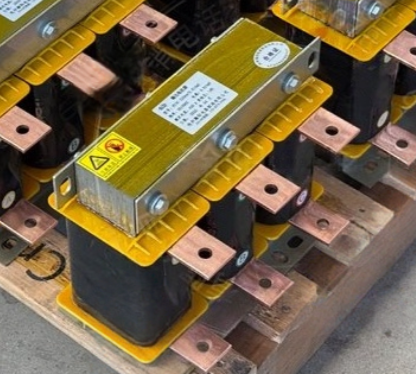

OCL-570 800A 400KW AC Input Output Line Reactor for VFD Inverter
The OCL-570 AC Input Output Line Reactor is a high-efficiency electrical component specifically designed for VFD (Variable Frequency Drive) inverters. With a rated current of 800A and rated power of 400KW, this dual-function reactor integrates both input and output capabilities to optimize power quality and protect VFD systems.
Construction & Design Features
- Dry-type iron core structure using high-quality low-loss cold-rolled silicon steel sheets
- Epoxy laminated glass cloth spacers ensure no air gap displacement during operation
- Low noise operation (≤65dB at 1m distance) with stable performance
- Coil tightly wound with F-class high-temperature enameled wire
- Excellent insulation performance with temperature rise limits: ≤95K for coils, ≤85K for cores
- Suitable for long-term continuous operation
Performance Benefits
- Suppresses high-order harmonics generated by VFD inverters
- Reduces voltage spikes and current surges
- Prevents parallel resonance to avoid damage to VFD components and power grid equipment
- Smooths power voltage fluctuations and improves power factor
- Relieves three-phase imbalance
- Extends service life of both VFD inverters and connected motors
Technical Specifications
| Rated Current | 800A |
|---|---|
| Rated Power | 400KW |
| Noise Level | ≤65dB at 1m distance |
| Temperature Rise | Coils: ≤95K, Cores: ≤85K |
| Protection Grade | IP00 |
| Overload Capacity | 1.5 times rated current for 1 minute |
| Compliance Standards | IEC289:1987, GB10229-88, JB9644-1999 |
Applications
Widely applied in industrial automation, motor drive systems, and high-power VFD scenarios including coal-fired power plant conveyor belts. Compact size, light weight, and easy installation ensure stable and efficient operation of the entire drive system.
