Flange 8bar Pneumatic Ball Valve 4.0MPa RQ4P1FP16-Q With WCB Actautor

Pneumatic ball valve , flang type RQ4P1FP16-Q , ball vavle with pnuematic actautor

Pneumatic flange ball valves are widely used in fluid cut-off control in industries such as natural gas, oil, chemical, metallurgy, papermaking, electricity, mining, printing and dyeing, biopharmaceuticals, daily chemical, food and beverage, water treatment and air treatment, and automatic pneumatic instruments Supporting the use of.

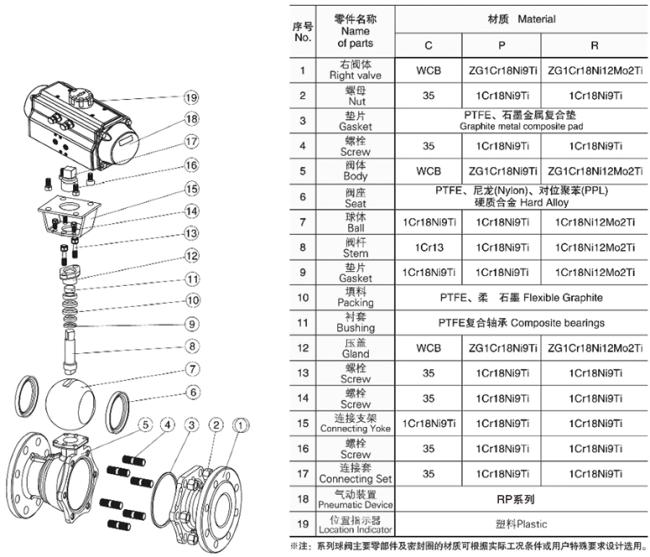

Pneumatic flange ball valve structure characteristics

1. Pneumatic actuator: adopts the new RP series pneumatic actuator, its structure has double-acting type and single-acting type (spring reset), adopts rack and pinion structure transmission, the performance is safer and more reliable; large-diameter valve adopts RP series pneumatic actuator The actuator adopts shift fork structure transmission, reasonable structure, large output torque, double-acting and single-acting (spring return); for detailed parameters, please refer to our company's RP series actuator catalog.

2. Shell structure: The valve body of the ball valve is designed in three forms: casting structure, forging structure and fully welded structure according to the needs and actual working conditions. Among them, the fully welded structure of the ball valve is mainly suitable for buried use.
