High Resolution Portable Endoscopy Larygoscope Rhinoscope And Digital Video Otoscope With USB Connection
High Resolution Portable Endoscopy Larygoscope Rhinoscope And Digital Video Otoscope With USB Connection
Feature
1. Specially designed for the department of ENT. It can be used to examine eardrum, nasal cavity and throat with different camera probe.
2. Avoid high cost of the traditional ENT examination equipment, such as light source, CCD, Monitor etc.
4. High resolution image. The SD card can store multiple freeze images and videos, and can be connect to computer to print patient reports.
5. 3.5 inch high definition LCD screen, watching and taking photos at the same time.6. it can be connected to large size monitor, synchronized to the big screen.
Specification
| Digital Otoscope Specifications | ||
| Handheld Device | Main Machine | |
| Package Size | 30*25*16cm | |
| Net Weight | 260g | |
| Intended use | Digital Otoscope | |
| Using method | Hand-held digital otoscope | |
| Image System | Light source | Nature white LED light |
| Focus range | 20 ~ 60 mm | |
| Camera | CMOS | |
| Resolution | 720 x 480 pixels (VGA) | |
| Focus system | Fixed | |
| Earcap | No.4 (4.0 mm) | |
| Display | Intergrated display | Full color TFT-LCD |
| Live image export | AV out | |
| Storage type | TF card (1GB) | |
| Image mode | Photo | |
| Format | JEPG | |
| Data transmit | USB | |
| Power | Battery | 3.7 V/ 2200mAH Li-ion Battery with safety protection |
| power supply | 100V-240V AC50/60HZ DC IN+5V 1A | |
| Energy save | Yes | |
| Lens | Digital Otoscope (ear inspection) | Digital Laryngoscope (throat inspection) | Digital Rhinoscope (nasal inspection) |
| Focus range | 10~50 mm | 80~160mm | 10~50 mm |
| Diameter | 5.5mm | 230mm | 5.5mm |
| Length | 70mm | 70mm | 250mm |
| Weight | 31g | 62g | 31g |
Available camera lens
Otoscope, Rhinoscope, Laryngoscope

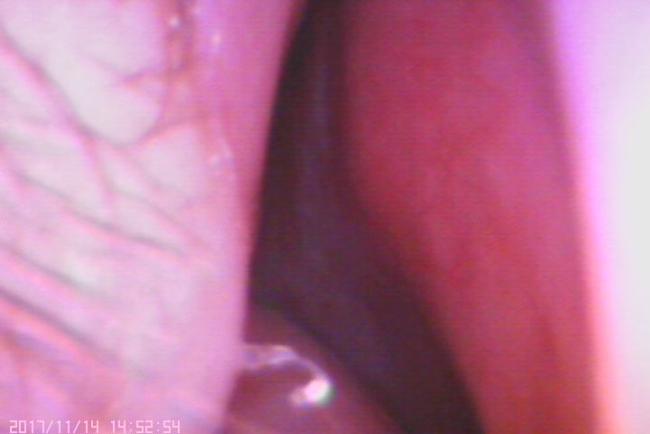

Images
Click the below catalogue and user's manual for digital otoscope S1 for more:
E-catalogue of digital endoscope BIO_S1.pdf
