Medical Infrared Vein Finder Accurate for Projecting Human Skin Vein Imaging Device
Medical Infrared Vein Finder Accurate for Projecting Human Skin Vein Imaging Device

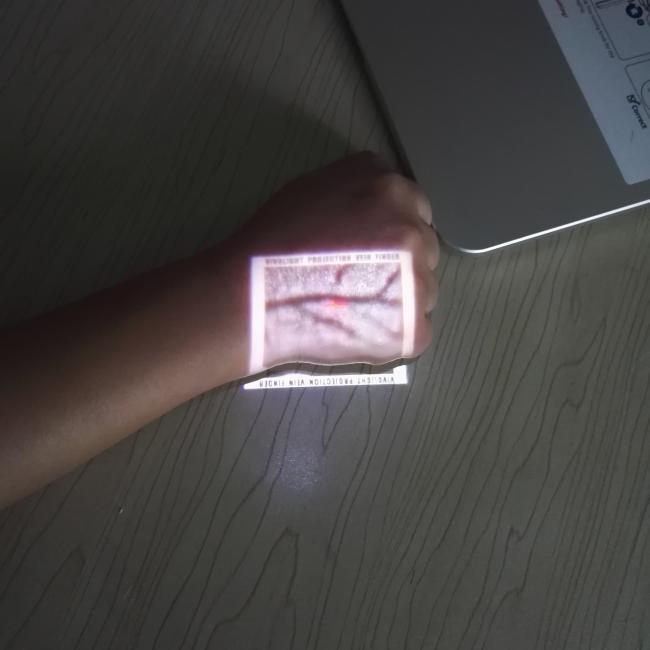

Vein locator BS5000 uses an infra-red camera to highlight blood and then projects the image onto the skin, making easier for health care provides to do necessary needle sticks.
Suitable for locate the veins on dorsal hand, arm, elbow, foot and head.
Why use?
Venipuncture is the most common traumaticprocedure in medical field. Many nurses are under the hard pressure when doing venipuncture. In order to release pressure for nurses, as well as reduce the patients’ pain, BS5000 vein finder has come out to help finding veins properly.
Product Specification
| Product model | BS5000 |
| Display mode | Projection |
| Source Type | near-infrared light (no radiation) |
| Infrared light wavelength | 850nm&940nm |
| Infrared radiation value | ≤0.6mW/m² |
| Alignment accuracy | ≤0.5mm |
| Image resolution | 856*480pixel |
| Brightness | 4 adjustable levels |
| Depth of detectio: | shallow: 0~2mm |
| deep: 2~4mm | |
| deeper: ≥4mm | |
| Optimal imaging distance | 210±30mm |
| Net weight | 430g |
| Dimension | 213mm*65mm*62mm(L x W x H) |
| Rated power | 8VA |
| Battery standby time | ≤2.5h |
| Charging time | ≤4h |
What’s the advantage?
| Safety | Using near infrared light, no laser, no radiation. |
| Accurate | Real show on skin, affectless images of veins. |
| Fast | Focus on vein automatically, show vein immediately. |
| Non-touch | Non-touch to anybody, prevent transmission of the virus. |
| Wide application | Adult, child, obese, dark-skinned and so on. All person available |
| Free environment | Effectively show the vein in dark or bright conditions, indoor and outdoor. Optional battery ensure 2 hours’ continuous working once external power supply is off. |
| Portable and Flexible | Easy to move, fix and operate. One button for power on/off, one button for brightness, one button for color selection Total three Buttons for all operations. |
| Easy to learn, no need for complicated debugging and maintenance. | |
| 3 colors offered | White,grey and green vein for being selected according to user’s habit. |
Pls click the below catalogue of vein finder BS5000 for reference:
E-catalogue for BIO_BS5000 Vein Finder.pdf
