3.5 inch Camera Digital Otoscope Laryngoscope Set USB Output Exam Ears Nose
3.5 inch Camera Digital Otoscope Laryngoscope Set USB Output Exam Ears Nose
ENT instrument S1 is economic digital handheld otoscope which used to examine ear and eardrum.
It can record digital photographs and videos by AV/USB output.
S1 is mainly used in hospital, Clinic and medical departments for doctors and nurses to examine ear. Also applicable for home use and health care.
Feature
1. Bigger LED Screen 3.5 inch with 960*480 screen resolution
2. Never hot lens with 300 thousand pixel
3. Disposable earmuff
4. Wi-Fi built-in
5. examine external ear and middle ear
6. cerumen, otitis media, ear infections, perforation of tympanic membrane checking
7. Small & Light to hold, Easy to carry with aluminum box
8. Otoscope, Rhinoscope, Laryngoscope three lens Optional
9. Rechargeable Li-On battery to ensure 4 hours continuous working at least
Product Specification
| Digital Otoscope Specifications | ||
| Handheld Device | Main Machine | |
| Package Size | 30*25*16cm | |
| Net Weight | 260g | |
| Intended use | Digital Otoscope | |
| Using method | Hand-held digital otoscope | |
| Image System | Light source | Nature white LED light |
| Focus range | 20 ~ 60 mm | |
| Camera | CMOS | |
| Resolution | 720 x 480 pixels (VGA) | |
| Focus system | Fixed | |
| Earcap | No.4 (4.0 mm) | |
| Display | Intergrated display | Full color TFT-LCD |
| Live image export | AV out | |
| Storage type | TF card (1GB) | |
| Image mode | Photo | |
| Format | JEPG | |
| Data transmit | USB | |
| Power | Battery | 3.7 V/ 2200mAH Li-ion Battery with safety protection |
| power supply | 100V-240V AC50/60HZ DC IN+5V 1A | |
| Energy save | Yes | |

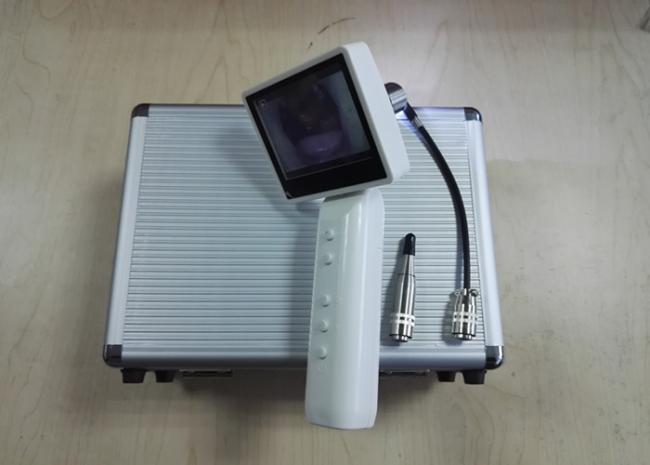

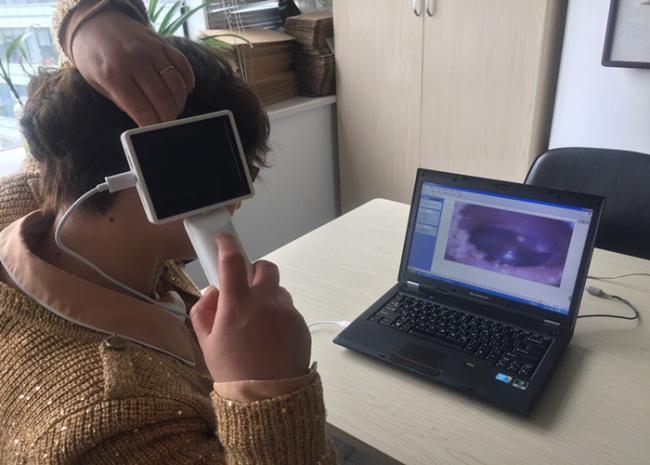

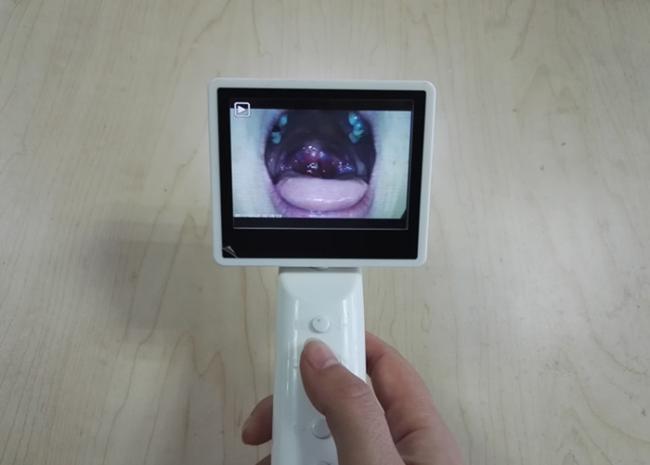

Product image
Brochure and user's manual as below:
E-catalogue of digital endoscope BIO_S1.pdf
User's manual for handheld digital medical otoscope S1.pdf
