Full Digital Handheld Ultrasound Scanner Portable Wireless Medical Wifi 125 Gram
Price:
Negotiable
MOQ:
1 unit
Delivery Time:
7 Working-days
Brand:
BIO
Product Description

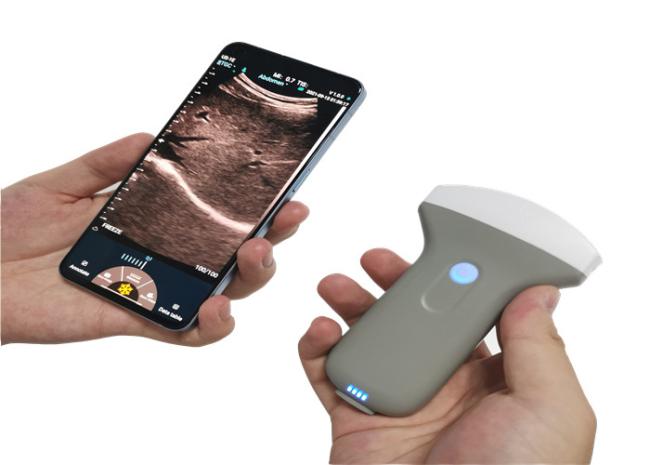

Full Digital Portable Wireless Medical Wifi Ultrasound Scanning Depth of 90-305mm
Quick Details
|
1 |
Place of Origin |
Wuxi, China |
|
2 |
Model Number |
U4 |
|
3 |
Warranty |
1 Year |
|
4 |
After-sale Service |
Onsite Training |
|
5 |
Instrument classification |
Class II |
|
6 |
Type |
Ultrasonic Transducer |
|
7 |
Item |
wifi ultrasound Probe |
|
8 |
Frequency |
convex:3.5/5mhz |
|
9 |
Scan Depth |
90-305mm |
|
10 |
Host |
ios/android/windows device |
|
11 |
Power |
by built-in battery |
|
12 |
3Weight |
125 gram |
|
13 |
Certificate |
CE |
Specification
| 1 | Scanning Mode | Convex array probe |
| 2 | Probe element | 96 |
| 3 | Frequency | 3.5 / 5MHz |
| 4 | Depth | 90~305mm |

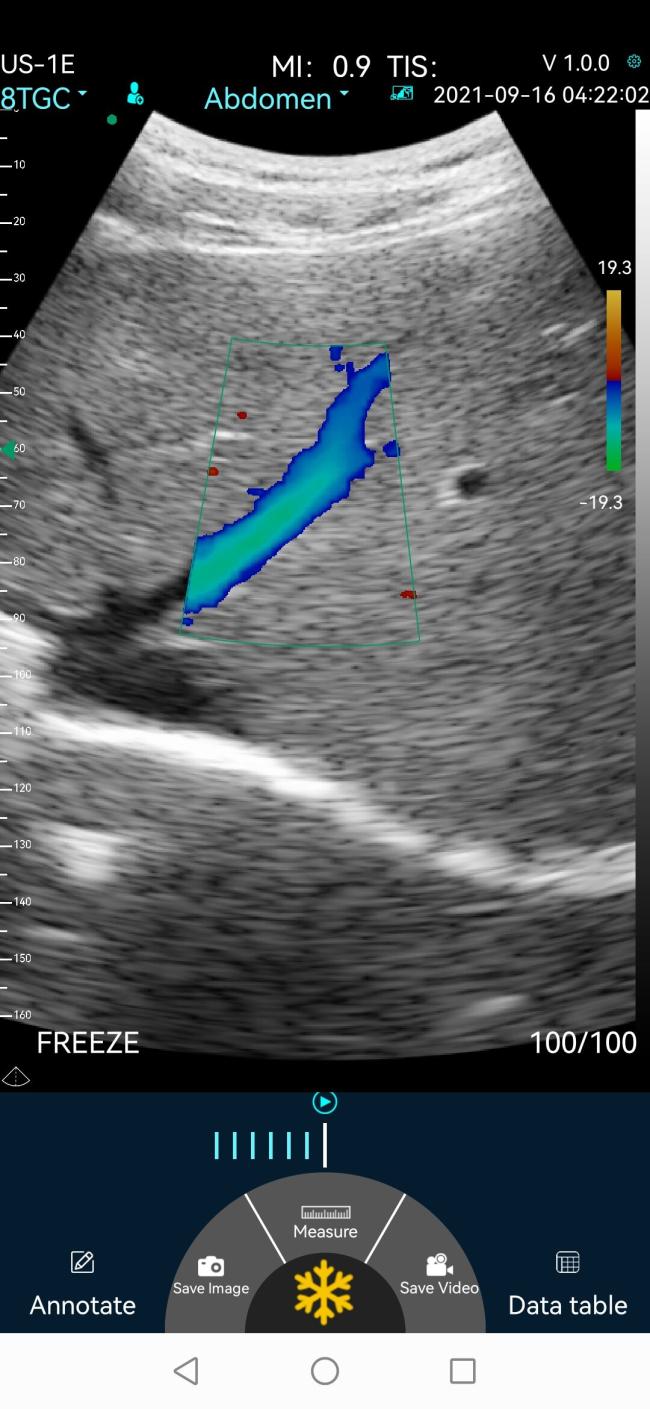

| 5 | Display mode | B, B/M, B+Color, B+PW, B+Color+PW, PDI |
| 6 | Application | Abdomen, Eermgency Cardiac, Obstetrics, Lung, Kidney, Urology, Gynecolog |
| 7 | Measure |
B: Length, Area / Circumference, GA (CRL, BPD, GS, FL, HC, AC) B+M: Heart rate, time, Distance B+PW: Velocity, Heart Rate (2), S/D, Depth |
| 8 | Lengh | 45mm |
| 9 | Wifi type | 802.11g/20MHz/5G |
| 10 | Working system | Apple IOS and Andriod, Windows |
| 11 | Voltage | 3.8V |
| 12 | Battery Capacity | 1350mAh (working time 1.5~2h) |
| 13 | Battery life | 5~8 years |
| 14 | Battery charge | by USB cable / wireless charge |
| 15 | Dinemsion | 115(h)*70(w)*20(d)mm |
| 16 | Weight | 102g |
Standard Configuration
| 1 | Wireless ultrasound probe | 1pc |
| 2 | USB A male to Type-C Female adaptor | 1pc |
| 3 | Portable wireless charger | 1pc |
| 4 | USB Cable for charging | 1pc |
| 5 | Type-C cable | 1pc |
Optional
| 1 | ipad Torlley | 1pc |
