3-in-1 5 Gallon Water Filling Machine With Capper For Bottled Mineral Water
Price:
Negotiable
MOQ:
1 set
Delivery Time:
30 days
Brand:
Sunswell
Product Description
3-in-1 5 Gallon Water Filling Machine With Capper For Bottled Mineral Water
TGX series 3-in-1 filling monoblock, combined with rinsing, filling and capping. It is innovated and designed in the requirement of still water, pure water, RO water, mineral water, sparkling water, etc. in big jars on the bases of introducing, digesting and absorbing advanced technology from Germany and Italy.
Applications:

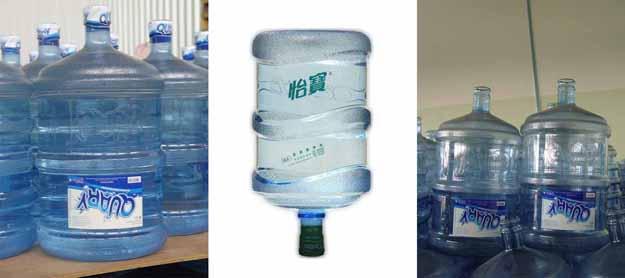

Still water, pure water, RO water, mineral water, sparkling water, etc. in 3 gallon, 4 gallon and 5 gallon bottles
Technical features of 5 gallon water filling machine
- The machine integrates rinser, filler and capper together.
- The machine is of stainless steel, resisting corrosion and easy to clean.
- The main electrical components and gas circuit elements are all of international brand.

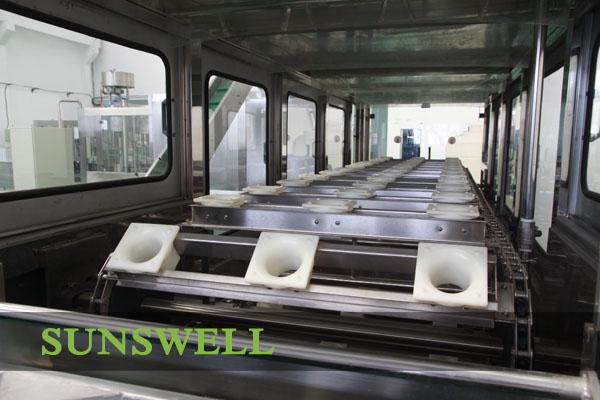

Equipment structure of 5 gallon water filling machine
- Automatic bottle loader
- Barrel rinser
- Filler
- Capper
- According to the customer’s requirement, the machine could be equipped with automatic cap separator, automatic leakage inspector, barrel washer, automatic cap loader, shrink wrapper, etc.
Specifications:
| Model |
TGX- |
TGX- |
TGX- |
TGX- |
TGX- |
TGX- |
| Filling heads | 1 | 2 | 3 | 4 | 6 | 8 |
| Volume(L) | 18.9 | 18.9 | 18.9 | 18.9 | 18.9 | 18.9 |
| Barrel size(mm) | 270*490 | 270*490 | 270*490 | 270*490 | 270*490 | 270*490 |
| Capacity(b/n) | 120 | 200 | 300 | 450 | 900 | 1200 |
| Gas pressure(Mpa) | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 | 0.6 | 0.6 |
| Gas consumption(m*3/min) | 0.37 | 0.37 | 0.6 | 0.8 | 1.5 | 1.8 |
| Moto power(kw) | 1.38 | 1.75 | 3.8 | 3.8 | 9.75 | 13.5 |
| Rated voltage(v) |
380V/ |
380V/ |
380V/ |
380V/ |
380V/ |
380V/ |
| Weight(kg) | 680 | 800 | 1500 | 2100 | 3500 |
|
