3 Filling Heads 5 Gallon Water Filling Machine Plasitc Bottle Bottling System
3 Filling Heads 5 Gallon Water Filling Machine Plasitc Bottle Bottling System
1.Washing,Filling,capping. saving resource and costing
2.Various machine styles suit different scale of company,big,midiem,small
3.Safe and clean.
Feature:

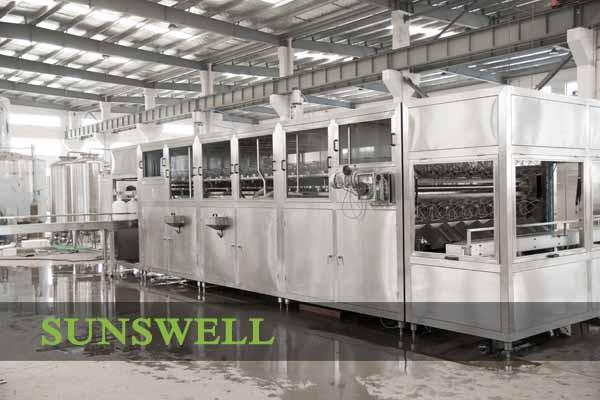

TGX -600 barrel production line is specially used for 5 Gallon barrel drinking water. This machine integrates washing/filling/capping into one unit. It is the good ideal for produce the mineral water/distilled water/pure water equipments. Whole machine are adopt the high quality stainless steel, It's erosion proof ability is strong, easy to washing.
Mostly electric components are adopt Siemens, OMRON etc famous company. Electric component adopt import Air TAC famous brand product. The machine is advanced in construction, occupying small area, steady in performance, high in produce efficiency, high in automatization degree. Easy in operation, which integrates machinery, electricity and pneumatics technologies together into one unit full automatic barreling machine.
Specifications:
| Model |
TGX- |
TGX- |
TGX- |
TGX- |
TGX- |
TGX- |
| Filling heads | 1 | 2 | 3 | 4 | 6 | 8 |
| Volume(L) | 18.9 | 18.9 | 18.9 | 18.9 | 18.9 | 18.9 |
| Barrel size(mm) | 270*490 | 270*490 | 270*490 | 270*490 | 270*490 | 270*490 |
| Capacity(b/n) | 120 | 200 | 300 | 450 | 900 | 1200 |
| Gas pressure(Mpa) | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 | 0.6 | 0.6 |
| Gas consumption(m*3/min) | 0.37 | 0.37 | 0.6 | 0.8 | 1.5 | 1.8 |
| Moto power(kw) | 1.38 | 1.75 | 3.8 | 3.8 | 9.75 | 13.5 |
| Rated voltage(v) |
380V/ |
380V/ |
380V/ |
380V/ |
380V/ |
380V/ |
| Weight(kg) | 680 | 800 | 1500 | 2100 | 3500 |
|
