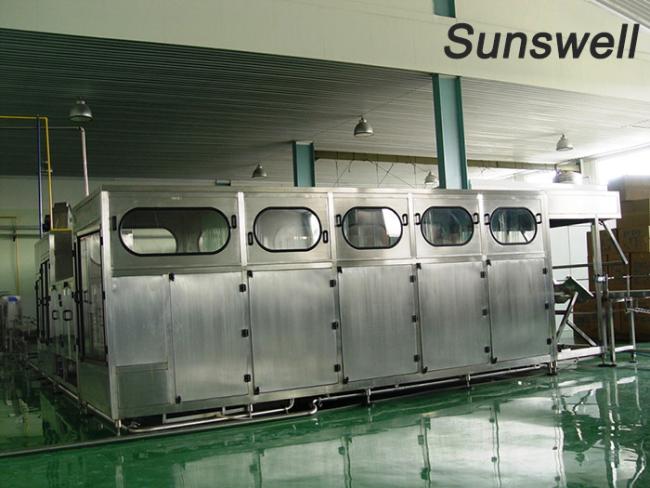

Pure Mineral Barrel 5 Gallon Water Filling Machine High Degree Of Automation
Automatic Pure Mineral Barrel 5 gallon water filling machine with good price
Desciption of Machine
(1) This filling line specially produces 3&5 gallons barreled drinking water.
(2)This series barreled filling production line integrates bottle washer, filler and sealer into one unit.
(3) In order to achieve the purpose of washing and sterilizing, bottle washer adopts multiple liquid injections washing and disinfectant spray, and washing solution can be used circularly. The sealer can seal bottle caps automatically.
(4) This filling line equips with water spraying device to sterilize caps of bottles in order to ensure those caps are aseptic and healthy.
(5) This line also can automatically carry out bottle washing, sterilizing, filling, capping, counting and products discharging.
(6) It has features of complete functional, novel design, and high degree of automation. It is a new kind of barreled water auto-producing line, which integrates mechanism, electricity and pneumatics technologies together.
Specifications:
| Model | TGX- 120 |
TGX- 300 |
TGX- 450 |
TGX- 600 |
TGX- 900 |
TGX- 1200 |
| Filling heads | 1 | 2 | 3 | 4 | 6 | 8 |
| Volume(L) | 18.9 | 18.9 | 18.9 | 18.9 | 18.9 | 18.9 |
| Barrel size(mm) | 270*490 | 270*490 | 270*490 | 270*490 | 270*490 | 270*490 |
| Capacity(b/n) | 120 | 200 | 300 | 450 | 900 | 1200 |
| Gas pressure(Mpa) | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 | 0.6 | 0.6 |
| Gas consumption(m*3/min) | 0.37 | 0.37 | 0.6 | 0.8 | 1.5 | 1.8 |
| Moto power(kw) | 1.38 | 1.75 | 3.8 | 3.8 | 9.75 | 13.5 |
| Rated voltage(v) | 380V/ 50HZ |
380V/ 50HZ |
380V/ 50HZ |
380V/ 50HZ |
380V/ 50HZ |
380V/ 50HZ |
| Weight(kg) | 680 | 800 | 1500 | 2100 | 3500 |
|
