Electric Fully Automatic 5 Gallon Water Filling Machine 100-1200 BPH Barrel Packaging

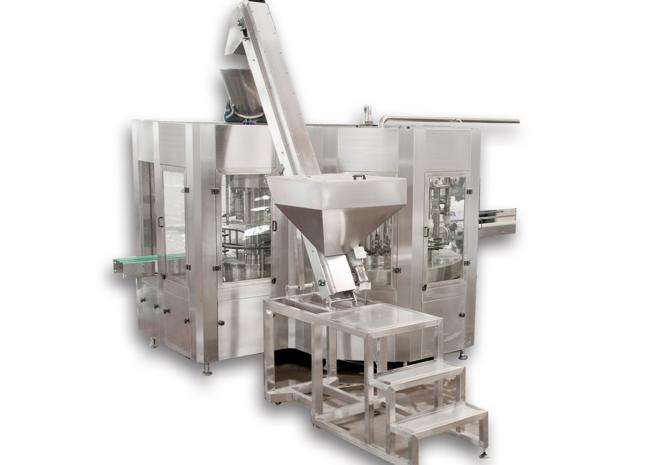

Fully Automatic 5 Gallon Barrel Water Filling Packaging Machinery
Flow chart of the production line:
1.Visual inspection -->2.De-capper -3.Out washer -->4.Automatic bottle feeder->5.Inner washer filler capper --->6.Light inspection --->7.Sleeve film -->8.Shrinker-->9.Bottle lifter--->10.Palletizer--->11.Storage in warehouse
Details requirements about the production line can according to the user's needs.
Applications:
QGF-Series 5gallon water production line mainly used in pure water and mineral water production. Capacity from 100bph to 1200bph, it can suitable both small plant and big plant.
Delivery time:
As usually as 20-45working days.
Install:
Our have 5install engineers for the foreign users. They have the install expericence in many countries.
| Item | Type | Remark | |
| Washing part | Number of bottle carrier / nozzles | 2 bottle carrier,12 sets spraying nozzles | homemade special rotary spray system |
| Number of rows for washing | 6 rows (each row 2 bottle carrier) | ||
| Number of rinsing pump | 6 sets of Lingxiao pump BLC series | disinfectant and tap water washing pump:370KW, pure water washing pump:550KW | |
| Filling part | Number of filling pump | 2 set of Lingxiao BLC755 | |
| Filling nozzle system | 2 sets of SS304 type | ||
| Pressure valves | 4V210-08(AC 220V) | Airtac | |
| Filters rugulators lubricators | AFC-2000 | Airtac | |
| Pressure sensitive switch | YSNS-C110 | Airtac | |
| Capping part | Automatic caps tank/caps chute | 100pcs caps tank (manual caps dosing) | |
| Numbers of the capping chuck | 2 sets of sticking type | ||
| Cylinder system | SC 50*50 x 2 sets, SC 50*525 x 1 set | Taiwan Airtac | |
| cap-ahigning motor | 90YCJG60 1:30 | ||
| Controlling unit | PLC system | K7M-DR20UE | korea LG |
| proximity switch | Ni10-Q25-AN6x | TURKER | |
| AC contactor | GMC-9 AC 220V | korea LG | |
| signal relay | MY2NJ-AC 220V | Omron | |
| air-leakage switch | C65N-16 4P/2P | MGE | |
| Electromagnetic valves | pure water washing:ZCS-15L filling:ZCS-20L | ||
| control panel | 1020-40-50 | ||
| Speed gear motor | 2 sets of 0.75Kw pearl river motor | ||
| station assign |
adopt double row six stations wash the bottle,two are filling ,two are capping - the first,sencond and thrid s tation: dinsinfectant washing, the fourth station:drain, the fifth station:tap water washing, the sixth station: pure water washing |
||
| input voltage | AC 220/380 V 50HZ | ||
