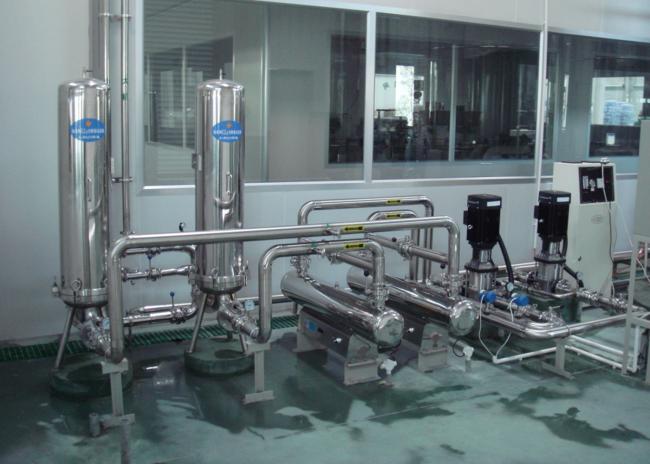

Reliable Ultrafiltration Purification Water Treatment Equipments / Plant Of SS304
Water Treatment Purification Equipment Plant Ultrafiltration System
Main Equipments Description
Raw Water Pump 1 set
Model: 4-50
Brand: Nanfang Pump
Quartz sand filter 1 set
Material: SUS304
Overall dimensions: D450×H2000 (mm)
Active carbon filter 1 set
Material: SUS304
Overall dimensions: D450×H2000 (mm)
Sodium ion exchanger 1 set
Material: SUS304
Overall dimensions: D450×H2000 (mm)
Precision filter 1 set
The filter medium of the precise filter is made of micro-hole film, it is the modern advanced equipment for the filter and widely used in medicine, electrical, food industries.
Working pressure: ≤0.3Mpa
Production capacity: 4T/h
Overall dimensions: D400×H1000 (mm)
Material: SUS304
Reverse osmosis 1 set
Capacity: 2T/H, 8 sets 4040 (Hydranautics)
One stage reverse osmosis
Pump: CDLF4-16 (Nanfang)
Ultraviolet radiation sterilizer 1 set
Working pressure≤0.2 Mpa
Treatment Capacity 2T/H
Overall dimensions: 116×75×65mm
Ozone generator 1 set
Capacity: 7g
Overall dimensions: 400×320×600mm
Material: Carbon Steel
Gas-liquid mixing pump 1 set
Model: 25QY-2
Brand: Nanfang Pump
Pure water tank
Raw Water Tank
Material: SUS304
Volume: 2m3
Specifications
| NO. | Machine name | Qty. | |
| 1 | Raw Water Tank | 1 set | |
| 2 | Raw Water Pump | ||
| 3 | Quartz sand filter | 1 set | |
| 4 | Active carbon filter | 1 set | |
| 5 | Sodium ion exchange | 1 set | |
| 6 | Precision filter | 1 set | |
| 7 | Ultra-filter | 1 set | |
| 8 | Ozone generator | 1 set | |
| 9 | Ozone mixer | 1 set | |
| 10 | Pure water pump | 1 set | |
| 11 | Pure water tank | 1 set | |
| 12 | Piping and valves | 1 set |
