KRJ-415GYZNL quad cell RJ45 network connector with 100Mbps integrated Ethernet filtering shielding strip light
Price:
Please contact us to get the latest price.
MOQ:
1 piece
Delivery Time:
10 days
Brand:
DGKYD
Product Description
KRJ-415GYZNL quad cell RJ45 network connector with 100Mbps integrated Ethernet filtering shielding strip light
KRJ-415GYZNL quad cell RJ45 network connector with 100Mbps integrated Ethernet filtering shielding strip light
Technical Specifications
| Part Number | KRJ-415GYZNL |
|---|---|
| Brand | DGKYD/OEM/ODM |
| Product Type | Connector-Modular |
| Connector Style | Jack |
| Jack Type | RJ45 |
| Connector Type | Modular Jack |
| Latch Style | Standard |
| Latch | TAB-DOWN |
| Filter | With Filter |
| LED Option | With LED |
| LED Color | Green/Yellow |
| Panel Stops | With Panel Stops |
| Shielded | With metal shield |
| Applies To | Printed Circuit Board |
| Port Configuration | 1X4 Ports |
| Number of Positions | 8 |
| Jack Configuration | 1X4 |
| Terminals per Port | 8 |
| Shield Material | Copper Alloy preplated with Nickel |
| PCB Mounting Orientation | Side Entry (Right Angle) |
| Contact Mating Area Plating | Gold 6u |
| Contact Base Material | Phosphor Bronze |
| Solder Tail Contact Plating Material | Tin-Lead over Nickel |
| PCB Mounting Style | Through Hole |
| Termination Method to PC Board | Through Hole-Press-Fit |
| Board Lock | With/Without Board Lock |
| Housing Material | PBT Polyester |
| Housing Color | Black |
| Housing Material Temperature | Standard |
| UL Flammability Rating | UL 94V-0 |

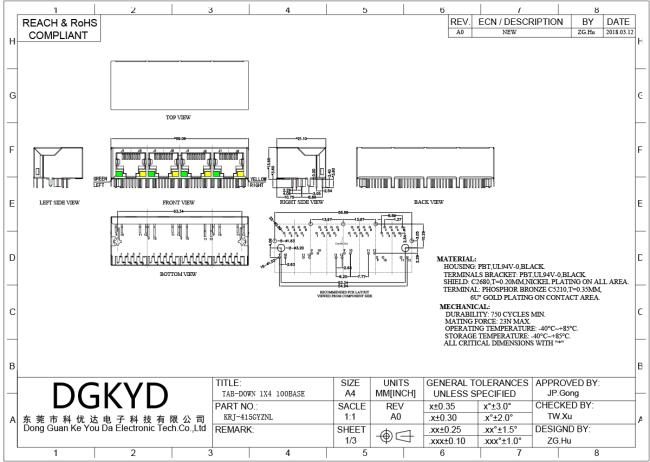

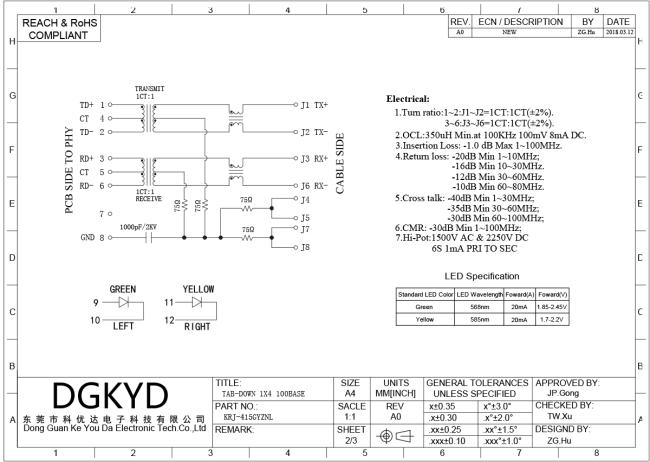

Product Images
Manufacturer Information
Company Profile
Factory Show
Factory Show
Factory Show
DGKYD Product
DGKYD Product
Product Features
- Interface type: crystal head application: 10/100/1000BASE-T Ethernet
- Type: RJ45 built in magnetics
- Working frequency: high frequency characteristic: filtering, anti-interference
- Working temperature: -40℃ to 85℃
- Storage temperature: -40℃ to 85℃
- Lead free soldering: wave soldering height up to 265℃
- RJ45 full series of integrated circuit accessories, RJ45 network connector manufacturer direct supply
- Business mode: Manufacturer
- Delivery time: on time delivery, around two weeks
- Specs for choices: LED indicator light (green, yellow, red, orange, blue, bi-color LED)
- Shield with EMI fingers or not
- Coil ratio of magnetic core
- Magnetics circuit diversification optional
- Contact gold plating (FU, 3U, 6U, 15u, 30U, 50U)
- Plastic housing material (PBT, PA46, PA9T, LCP)
The electrical properties of the products meet the industry standards, the appearance and mechanical properties meet the appearance dimensions, the mechanical manufacturing industry standards, and the environmental protection standards. Your satisfaction is the purpose of our service!
Frequently Asked Questions
Q: Are you trading company or manufacture?
A: We are manufacture. Welcome to our factory.
Q: What about your lead time?
A: For products in stock, the goods will be delivered within 5-7 working days after payment. For customized products and products that are out of stock, the delivery time should be confirmed according to your order quantity.
Q: Can you provide samples? Are they free?
A: Yes. Usually we can provide 2-3 samples of standard products free for testing.
Q: Can I put my own logo on it?
A: Yes. As a manufacturer with 11-year OEM experience, we are fully capable of customizing products for you.
Applications:
Integrated RJ45 connector main used to :
• 10/100M net card,PCMCIA net card,USB Hub,network switch,router,fiber optic transceivers,optical transceiver,IP phone, internet set-top box,internet camera,net bridge,computer,telecommunication,MODEM,HomePNA,DSLï¼ADSL and so on.
