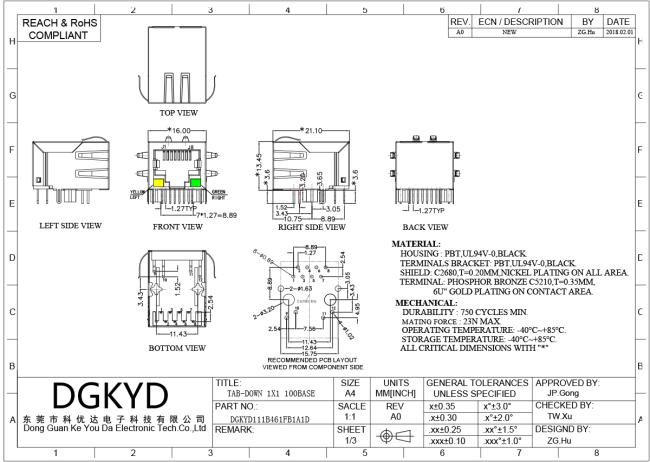

Tab Down 1x1 Port 1000 Base-T RJ45 Shielded Connector Ethernet LAN Modular Jack with Integrated Magnetics
Tab Down 1x1 Port 1000 Base-T Ethernet RJ45 LAN Connector — Part Number: DGKYD111B461FB1A1D
| Part Number | DGKYD111B461FB1A1D | Brand | DGKYD / OEM / ODM |
|---|---|---|---|
| Product Type | Connector-Modular | Connector Style | Jack |
| Jack Type | RJ45 | Connector Type | Modular Jack |
| Latch Style | Standard | Latch | TAB-DOWN |
| Filter | With Filter | LED Option | With LED |
| LED Color | Yellow-Green | Panel Stops | With Panel Stops |
| Shielded | With metal shield | Applies To | Printed Circuit Board |
| Port Configuration | Single Port | Number of Positions | 8 |
| Jack Configuration | 1X1 | Terminals per Port | 8 |
| Shield Material | Copper Alloy preplated with Nickel | PCB Mounting Orientation | Side Entry (Right Angle) |
| Contact Mating Area Plating | Gold 6u | Contact Base Material | Phosphor Bronze |
| Solder Tail Contact Plating Material | Tin-Lead over Nickel | PCB Mounting Style | Through Hole |
| Termination Method to PC Board | Through Hole-Press-Fit | Board Lock | With / Without Board Lock |
| Housing Material | PBT Polyester | Housing Color | Black |
| Housing Material Temperature | Standard | UL Flammability Rating | UL 94V-0 |
- Interface Type: RJ45 connector for 10/100/1000BASE-T Ethernet

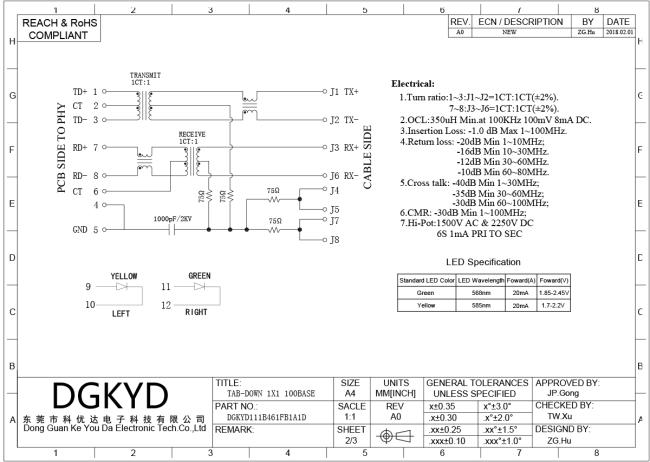

- Type: RJ45 with built-in magnetics
- Working Frequency: High frequency with filtering and anti-interference characteristics
- Working Temperature: -40°C to 85°C
- Storage Temperature: -40°C to 85°C
- Lead-Free Soldering: Wave soldering height up to 265°C
RJ45 full series of integrated circuit accessories, manufacturer direct supply.
- Business Mode: Manufacturer
- Delivery Time: Approximately two weeks for standard orders
- Customization Options:
- LED indicator light (green, yellow, red, orange, blue, bi-color LED)
- Shield with EMI fingers or without
- Coil ratio of magnetic core
- Magnetics circuit diversification options
- Contact gold plating (FU, 3U, 6U, 15u, 30U, 50U)
- Plastic housing material (PBT, PA46, PA9T, LCP)
Our products meet industry standards for electrical properties, mechanical dimensions, and environmental compliance. Your satisfaction is our primary service objective!
A: We are a manufacturer. Welcome to visit our factory.
A: For products in stock, delivery within 5-7 working days after payment. For customized and out-of-stock products, delivery time is confirmed based on order quantity.
A: Yes. We typically provide 2-3 samples of standard products free for testing purposes.
A: Yes. As a manufacturer with 11 years of OEM experience, we are fully capable of customizing products to your specifications.
