Fully Automatic Aluminum Aerosol Can Production Line 300-500 Cans/Min

Price Negotiable
Price: $100000-1000000
MOQ: 1pcs
Delivery Time: 10-12 months
Brand: FAMOUS
Product Description
Product Overview

Fully Automatic Aluminum Aerosol Can Production Line

Our aluminum aerosol can production line is a state-of-the-art, fully automated manufacturing solution designed for
high-efficiency, precision, and durability. Ideal for producing cosmetic, pharmaceutical, industrial, and household aerosol cans,
this production line ensures consistent quality, leak-proof performance, and compliance with international standards.



Technical Specifications:
* Production Speed: 300-500 cans/min
* Can Capacity Range: 50ml – 750ml
* Material: High-grade aluminum (AA3003/AA3104)
* Thickness Control: ±0.01mm precision
* Power Supply: 380V/50Hz (customizable)
* Automation Level: Fully automatic (PLC control)
* Certifications: ISO 9001, CE, GMP (for medical-grade)

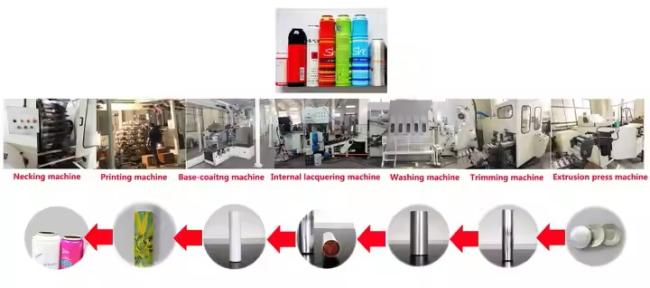

No
Machine Name
Key Function
Technical Highlights
1
Extrusion Press Machine
Forms aluminum slugs into precise cups
±0.01mm tolerance, servo-driven, 1M+ mold cycles
2
Trimming Machine
Trims cup edges to uniform height
Automatic scrap recycling, adjustable speed
3
Washing Machine
Removes oil and contaminants (3-stage cleaning)
Alkaline → acid → DI water, FDA-compliant
4
Accumulator
Balances production flow between stations
Reduces downtime by 15–20%
5
Internal Coating Machine
Applies corrosion-resistant epoxy coating inside cans
FDA-approved materials, spray precision ±2µm
6
Lacquer Curing Machine
Dries/cures internal coating (UV or thermal)
±2°C temp control, energy-efficient
7
Base Coating Machine
Applies primer for print adhesion
Uniform layer, quick-drying
8
Printing Machine
Adds logos/designs (flexographic or digital)
6–8 colors, 1200 dpi resolution
9
Varnish Machine
Applies protective gloss/matte finish
Scratch-resistant, customizable
10
Drying Oven
Dries printed/varnished cans
Multi-zone IR heating, adjustable length
11
Necking Machine
Forms threaded necks (2–3 stages)
Precision: ±0.05mm, servo-controlled
