Prefabricated Supermarket Commercial Steel Buildings Lightweight ASTM

　　
Quick Detail:
1. The main steel structural frames are prefabricated in production bay
2. The total weight is light compare to reinforeced concrete structre

3. All the H type steel columns and beams are fabricated through automatic production line

4. The steel grade is ASTM A36, which is equivalent to Chinese Q345B

Specifications

• Steel Grade: ASTM A36 which is equivalent to Q345B
• Size of the structural steel building: W50xL80xH13 meters
• Steel Frames consisted with structural steel columns and beams
• The structural steel beams and columns are coated with fireproof painting
• The structural steel building is multi-storey buildings with total four stories
• The doors are heavy steel industrial doors made from steel.

• The floor of the stoeries are made from steel floor decks as the base, the surface is reinforeced concret

• The Beams and columns are fabricated throught automatic production line

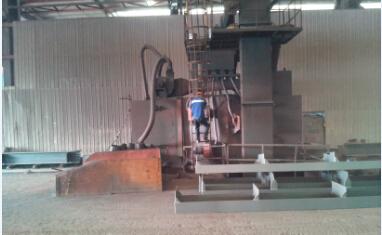

• The rusting in Structural Steel Members' must be removed by shotblast machine or hand polishing

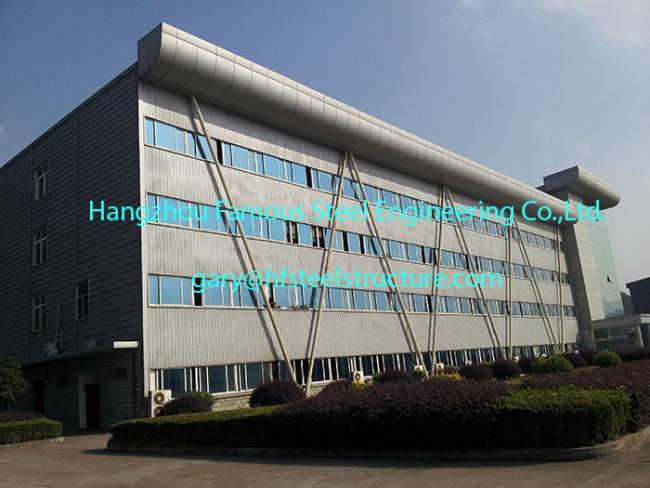

Below is the appearance of the commercial steel buildings for supermarket after erection
