Hot Selling Steel Sheet Pile U-type SY295/SY390 Sheet Pile

6m 9m 12m customized length

The Hot Rolled U Sheet Pile was produced over 100 years ago and millions of tons of it have been used globally. Also known as larssen interlocking sheet piles, the segments with indented profiles (troughs) interlock to form a wall with alternative indents and outdents. The troughs help to strengthen the sheet piles & increase their resistance to bending.The thicker rolled flange and interlock design enable multiple reusage making Hot Rolled U Sheet Piles a common choice for temporary foundation works. Famous is able to offer stock and made-to-order Hot Rolled U Sheet Piles to suit your demands and these u-shaped steel piles can be supplied in various width and lengths.

Features and advantages

*Wide range of sections,
*Excellent statical properties,
*Great aptitude for re-use and driving into compact soils,
*Very good installation quality and performance.

Steel Qualities: S270GP, S355GP, S390GP and S430GP in accordance with EN 10 248-1.


Standard Availability: Lengths up to 26m.

Delivery Options:

* Single or Pairs

* Pairs either loose, welded or crimped

* Lifting Hole

* By container (11.8m or less) or Break Bulk

* Corrosion Protection Coatings​

Sectional Properties

Type	Shape	Width	Unit Mass Wall	Section Modulus	Moment of Inertia
		mm	kg/m2	cm3/m	cm4/m
U-type sheet piles		400	57 to 253	693 to 4570	11089 to 137561
		600
		650
		700
		750

Application: Quay Wall; Revetment; Man Made Island; River Revetment; Temporary Retaining Wall; Bridge Pier Protection; Cofferdam; Retaining Wall, Seawall; Ground Foundation; Excavation and etc.

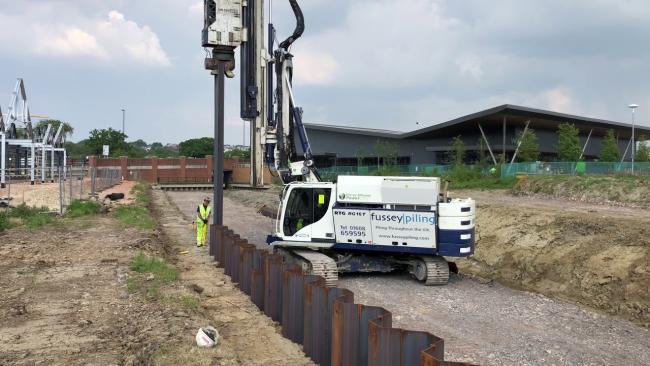

Detailed Product Images

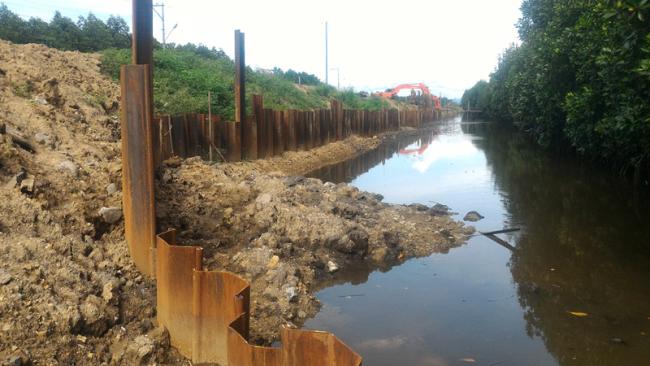

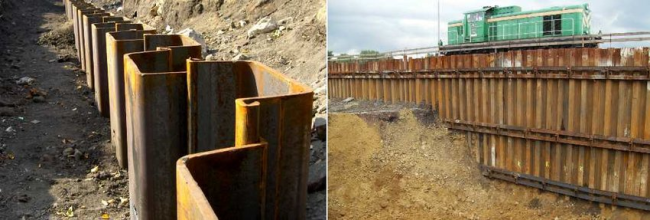

Applications

Certificates

About Us - Hangzhou Famous Steel Engineering Co.,Ltd

Famous is a business unit of KNSN Group. Famous supplies to the global markets a wide variety of premium steel products for foundations : Z type, U type, Omega type, Trench, Flat web sheet piles, HZ combined walls, Tubular combined walls, tie-rods and accessories, in assortment of steel grades and production standards. A wide range of thicknesses and widths and depths are achievable at very moderate prices and committed to be shipped within the stipulated time frame.

If you have interest, please contact us and tell us about your project by email or phone. We are happy to talk about our capabilities and solutions.
