Low Cost U Section Hot Rolled Steel Sheet Pile U-type Sheet Piles

U Section hot rolled steel sheet pile sections, incorporating the well-known and efficient Larssen interlocks, are used in the foundation of pits, coastline strengthening, bridge construction, piers, tide control, flood protection, agriculture irrigation, water reservoirs and other work requiring extremely strong support in a narrow geometry.

We are capable to supply hot rolled U-type sheet piles in various thicknesses, widths and lengths with handling holes (dia 50mm, 200mm from top), as single or paired piles and with corrosion protection. Corner sections and a wide range of tie bars and anchors are available at request.

The advantages of U Hot Rolled Steel Sheet Piles are multiple:
– A wide range of sections forming several series with various geometrical characteristics, allowing a technically and economically optimum choice for each specific project.
– Combination of great profile depth with large flange thickness giving excellent statical properties.
– The symmetrical form of the single element has made these sheet piles particularly convenient for re-use.
– The possibility of assembling and crimping the piles into pairs at the mill improves installation quality and performance.
– Easy fixing of tie-rods and swivelling attachments, even under water.
– Good corrosion resistance, the steel being thickest at the critical corrosion points.

Steel Qualities: S270GP, S355GP, S390GP and S430GP etc.


Standards: EN10248, ASTM A-328,JIS A 5523 , JIS A 5528.

Delivery Options:

* Single or Pairs

* Pairs either loose, welded or crimped

* Lifting Hole

* By container (11.8m or less) or Break Bulk

* Corrosion Protection Coatings​

Sectional Properties

Type	Shape	Width	Unit Mass Wall	Section Modulus	Moment of Inertia
		mm	kg/m2	cm3/m	cm4/m
U-type sheet piles		400	57 to 253	693 to 4570	11089 to 137561
		600
		650
		700
		750

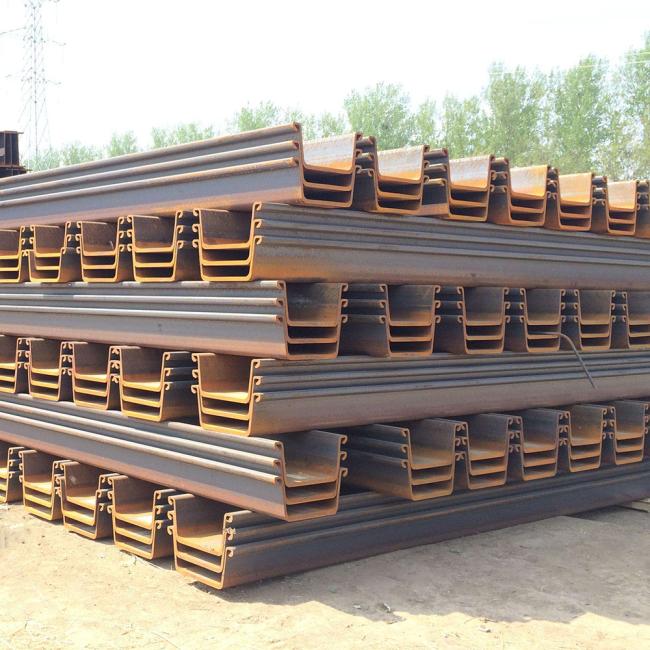

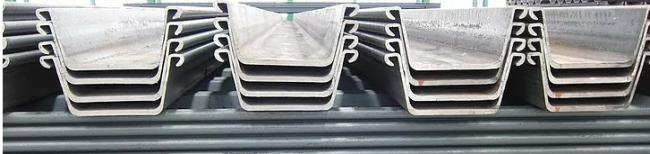

Detailed Product Images

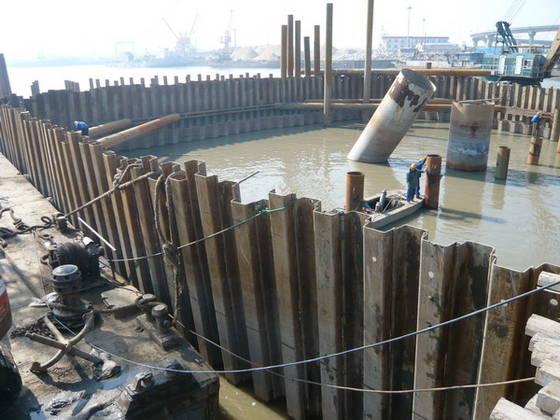

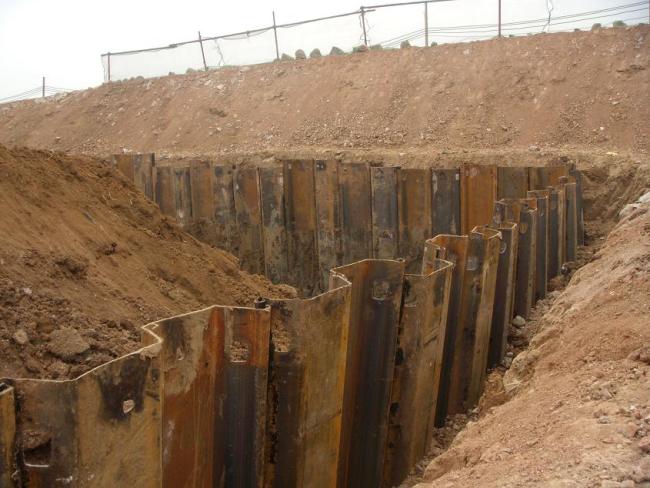

Applications

U-type sections have been widely used for various types of permanent and temporary structures, and are one of the most familiar sheet piles among both designers and users, applications include

Quay Wall;

Revetment;

Man Made Island;

River Revetment;

Temporary Retaining Wall;

Bridge Pier Protection;

Cofferdam;

Seawall;

Ground Foundation;

Excavation

Certificates

About Us - Hangzhou Famous Steel Engineering Co.,Ltd

Famous is a business unit of KNSN Group. Famous supplies to the global markets a wide variety of premium steel products for foundations : Z type, U type, Omega type, Trench, Flat web sheet piles, HZ combined walls, Tubular combined walls, tie-rods and accessories, in assortment of steel grades and production standards. A wide range of thicknesses and widths and depths are achievable at very moderate prices and committed to be shipped within the stipulated time frame.

If you have interest, please contact us for a quote.

Email: Eva@hfsteelstructure.com

Phone: +86-571-87688170; +86-13989831561
