Disc Marine Oil and Fuel Oil Centrifuge Separator
Disc Marine Oil and Fuel Oil Centrifuge Separator
|
Discharging type |
Full discharging |
||
|
rated capacity |
l/h |
2200 |
|
|
Motor power |
kw |
4 |
|
|
N.W. |
kg |
470 |
|
|

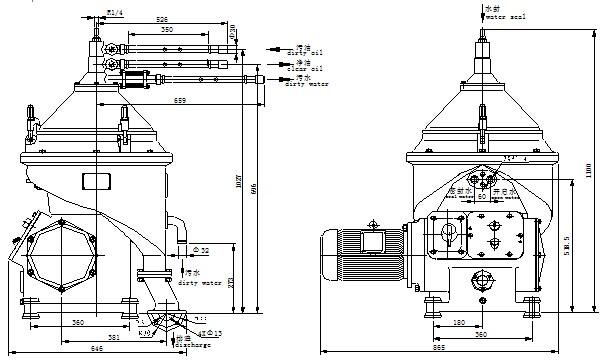

Dimension |
L×W×H |
865mm×795mm×1100mm |
|
|
export |
dimension of package |
L×W×H |
1000mm×920mm×1300mm |
|
G.W. |
kg |
570 |
|
Other oil capacity reference chart
|
oil types |
fuel oil |
lubrication oil |
||||||||||
|
fuel oil |
heavy fuel oil |
SAE30,40 |
detergence oil |
steam turbine oil |
||||||||
|
kinematical viscosity(mm2/s) |
1.9-5.5 |
5.5-24 |
120 |
180 |
380 |
100-120 |
61.2-74.8 |
|||||
|
40℃ |
50℃ |
40℃ |
40℃ |
|||||||||
|
density/(kg/m3)(20℃) |
<900 |
900-991 |
880-900 |
<900 |
||||||||
|
separating temperature (℃) |
normal temperature,40-60best |
90-98 |
80-95 |
|||||||||
|
recommended capacity (l/h) |
2400 |
2000 |
1100-1200 |
900-1000 |
700-800 |
1000-1200 |
500-600 |
1600-1700 |
||||
|
If you have special requirement, Please connect with us. |
||||||||||||
