Wear-Resistant Pusher Centrifuge for Potassium Chloride Dewatering
Wear-Resistant Pusher Centrifuge for Potassium Chloride Crystal Dewatering is designed for continuous dewatering and mother liquor separation of potassium chloride crystals in potash, fertilizer, mineral salt, and chemical production lines.
Potassium chloride crystal slurry may come from crystallization, flotation, washing, brine concentration, or potash processing systems. The slurry usually contains KCl crystals, mother liquor, fine mineral particles, residual salts, and sometimes abrasive impurities.
A wear-resistant pusher centrifuge removes free liquid through centrifugal filtration and continuously discharges dewatered KCl crystal cake before drying, cooling, screening, or packaging.
- Potassium chloride crystal dewatering
- KCl slurry solid-liquid separation
- Potash fertilizer crystal dewatering
- Mother liquor separation after crystallization
- KCl wet cake discharge before drying
- Potassium chloride washing and dewatering
- Mineral salt crystal dewatering
- Potash brine processing
- Potassium chloride product recovery
- Continuous potash production line integration
| Output Phase | Typical Composition | Main Purpose |
|---|---|---|
| Potassium Chloride Crystal Cake | KCl crystals, potash fertilizer crystals, mineral salt particles | Recover dewatered KCl product before drying |
| Mother Liquor | Brine, process liquor, dissolved salts, residual solution | Separate liquid from KCl crystals for return, reuse, recovery, or treatment |
| Wash Liquor | Washing liquid after KCl cake washing, if used | Reduce soluble impurities or residual mother liquor |
The actual separation result depends on KCl crystal size, slurry concentration, mother liquor viscosity, impurity content, screen opening, washing requirement, and operating parameters.
Potassium chloride crystals are generally suitable for filtration, but the process may involve abrasive crystal particles, mineral impurities, and continuous operation. If wear protection is not properly designed, the plant may face:
- Faster screen segment wear
- Higher maintenance frequency
- Increased product loss through worn screen openings
- Unstable cake formation
- Uneven solids discharge
- Higher wet cake moisture
- More downtime for screen replacement
- Lower long-term operating reliability
A wear-resistant pusher centrifuge helps extend service life and maintain stable filtration performance in continuous KCl crystal dewatering.

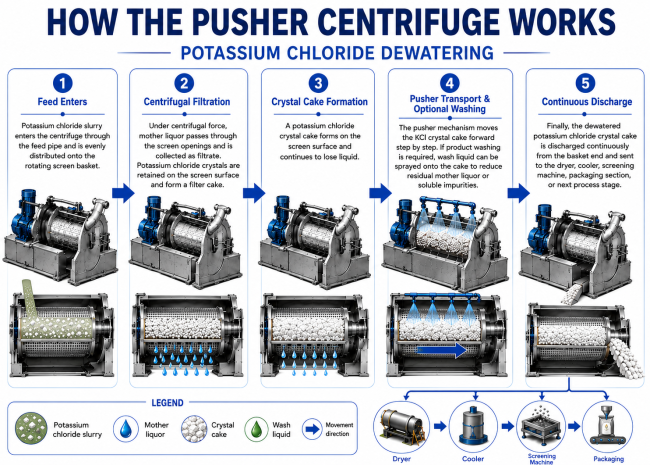

Potassium chloride slurry enters the centrifuge through the feed pipe and is evenly distributed onto the rotating screen basket.
Under centrifugal force, mother liquor passes through the screen openings and is collected as filtrate. Potassium chloride crystals are retained on the screen surface and form a filter cake.
The pusher mechanism moves the KCl crystal cake forward step by step. During this movement, the cake continues to lose liquid. If product washing is required, wash liquid can be sprayed onto the cake to reduce residual mother liquor or soluble impurities.
Finally, the dewatered potassium chloride crystal cake is discharged continuously from the basket end and sent to the dryer, cooler, screening machine, packaging section, or next process stage.
| Model | PP-25 | PP-40 | PP-50 | PP-60 | PP-85 |
|---|---|---|---|---|---|
| Diameter (mm) | 200/251 | 290/360 | 438/500 | 560/630 | 738/820 |
| Rotate speed (Max)(rpm) | 3000 | 2500 | 2000 | 1360 | 1040 |
| Stroke of Pusher Mechanism (times/min) | 33-52 | 40-80 | 40-80 | 70-80 | 70-80 |
| Main motor power (kw) | 7.5 | 11-15 | 352-1140 | 286-1145 | 236-875 |
| Main motor Protection class | IP54/F1 | IP54/F1 | IP54/F1 | IP54/F1 | IP54/F1 |
| Main motor Power supply | 3 phase AC | Customized 3 phase AC | Customized 3 phase AC | Customized 3 phase AC | Customized 3 phase 380V/50HZ |
| Oil pump motor spec/Power(Kw) | 4 | NB4C100F | SNE/A280 | NB5D140F | NBX6-F160F |
| Oil pump outflow(ml/turn) | 100 | 100 | 480 | 140 | 180 |
| Oil pump max pressure(Mpa) | 2.5 | 2.5 | 2 | 8 | 8 |
| Export Dimension(mm) | 2155x1320x990 | 2346x1090x1006 | 3660x1420x2078 | 3127x1700x1955 | 3990x2000×1939 |
| 820x500x1650 | |||||
| Weight(kg) | 1275 | 2600 | 4400 | 4860 | 6250 |
Wear-Resistant Design for KCl Crystals
Wear-resistant screen segments and contact parts help reduce abrasion from potassium chloride crystals and mineral impurities.
Continuous KCl Crystal Dewatering
The machine supports continuous feeding, filtration, washing, dewatering, and discharge in potash production lines.
Lower Wet Cake Moisture
Centrifugal filtration removes free mother liquor from the KCl crystal cake, helping reduce downstream drying load.
Stable Crystal Cake Discharge
The pusher mechanism moves the KCl cake forward step by step, supporting stable and continuous solids discharge.
Product Washing Available
Cake washing nozzles can be added to reduce residual mother liquor and improve product quality when required.
Reduced Product Loss
Customized screen openings help retain potassium chloride crystals while allowing mother liquor to pass through.
Easy Integration with Potash Lines
The centrifuge can be connected with crystallizers, washing systems, dryers, coolers, screening machines, packaging systems, and brine recovery systems.
Under suitable feed and operating conditions, the system can typically help achieve:
- 3–10% wet cake moisture for many well-formed potassium chloride crystals
- 95–99.5% KCl crystal recovery when the screen opening is properly matched with the particle size distribution.
- 30–70% reduction of residual mother liquor in the KCl cake when cake washing is applied.
- 15–40% reduction in downstream dryer load by removing free brine or mother liquor before drying.
- More stable filtration performance in abrasive potash slurry
- Reduced screen wear and product loss risk compared with unsuitable screen openings or low wear-resistance materials.
- Longer replacement interval for key filtration parts
- 8–24 hours/day continuous operation in potash or fertilizer production lines
Final performance depends on KCl crystal size, particle shape, slurry concentration, chloride brine composition, abrasive impurity content, screen opening, centrifugal force, washing condition, and operating parameters.
To recommend a suitable pusher centrifuge for potassium chloride crystal dewatering, please provide:
- Processing capacity
- Feed slurry concentration
- Solids content
- KCl crystal size distribution
- Crystal shape
- Mother liquor composition
- Mother liquor viscosity
- Chloride concentration
- Abrasive impurity content
- Feed temperature
- Target wet cake moisture
- Product washing requirement
- Required product purity
- Filtrate reuse or treatment requirement
- Existing upstream crystallizer, washer, or brine system
- Downstream dryer, cooler, screening machine, or packaging system
- Required operating hours per day
- Site voltage and control preference
- Preferred material of construction
- Required screen slot size, if known
It is used for continuous dewatering, mother liquor separation, and optional washing of potassium chloride crystals.
KCl crystals and mineral impurities may cause abrasion on the screen segment, basket, and pusher contact parts. Wear-resistant design helps reduce maintenance frequency and maintain filtration accuracy.
Yes. By removing free mother liquor before drying, the pusher centrifuge can help reduce downstream drying load.
Yes. Cake washing nozzles can be added to reduce residual mother liquor or soluble impurities.
Final moisture depends on crystal size, cake permeability, slurry concentration, mother liquor viscosity, screen opening, centrifugal force, washing condition, and operating settings.
If you have customer resources or project opportunities in potassium chloride production, potash processing, fertilizer crystal dewatering, mineral salt processing, or solid-liquid separation systems, Peony welcomes cooperation.
We support distributors, agents, and project partners with model selection, process advice, customized configuration, equipment manufacturing, installation guidance, spare parts, screen segment customization, and after-sales service.
Send us your material name, capacity, crystal size, solids content, mother liquor composition, abrasive impurity condition, and target cake moisture. Our team will help evaluate the suitable potassium chloride crystal dewatering solution.
