Galvanized Steel Sheet Square Rainwater Downpipe Roll Former For 80mm, 100mm Or 120mm Coil Width
Galvanized Steel Sheet Square Rainwater Downpipe Roll Former For 80mm, 100mm Or 120mm Coil Width
Descrition of Rainwater Downpipe Roll Former
|
This downpipe roll forming machine can make square downpipes or round downpipes, and also it works with a drainpipe bending machine which can bend the roll formed pipe, and let the drainpipe and the bending connect to be the whole.
|
|
The product after roll forming has long working time than the tranditional ppc pipe, and not aging. It can make the project more integrate, and help to enhance the image of the all project.
|
|
Drainpipe forming machine is composed of uncoiler, the feed leading table, the main machine, the cutting device, hydraulic system, control system and the output tables.
|
Main Technical Parameters of Downpipe Roll Former
- Material Thickness: 0.4-0.8mm
- Decoiler: Manual or hydraulic decoiler
- Weight capacity of decoiler: 3T
- Main motor power: 7.5Kw
- Forming stations: about 20 stations
- Forming speed: 0-15m/min
- Machine weight: about 12T
- Machine frame by 350H Beam welding
- Machine structure: wall board panel
- Axis diameter: 70mm
- Drive: Chain transmission
- Roller material: 45# forge steel, polished and coated with 0.05mm hard chrome surface
- Axis material: High grade 45# steel
- Cutting: Hydraulic cutting
- Hydraulic power: 5.5Kw
- PLC: PANASONIC Brand

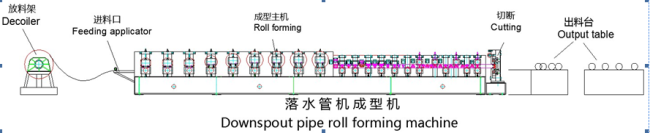

Working Flowing
Decoiler--> Coil sheet guiding and feeding --> Roll forming machine with safty guard--> Tighten Device ->
Cut to length --> Out-put Table --> Curving machine
Main Components
| Decoiler | 1 Unit |
| Feeding Guide | 1 Unit |
| Downpipr Roll Forming Machine | 1 Unit |
| Hydraulic Cutting | 1 Unit |
| Hydraulic Station | 1 Unit |
| PLC Computer Control | 1 Unit |
| Output Table | 1 Unit |
| Elbow Machine | 1 Unit |

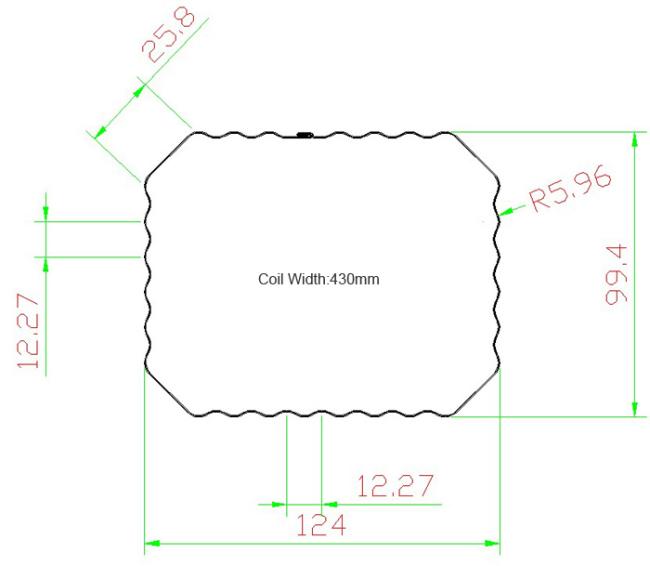

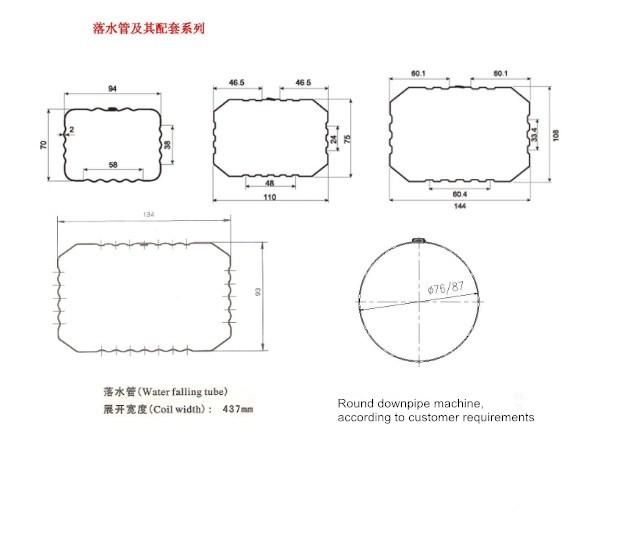

Downpipe Roll Former Reference Drawing
Applications
Rainwater downpipe, downspout, rainspout, water pipe, drainpipe
Competitive Advantaegs
1. Durable and widely used products
2.Simple to operate when assemble
3.Direct manufacturer, provide with high quality and best price.
4.Provide sample in free.
5.Products and design solution supplied fast and freely
6.Best design oriented for your special requirements
More Machine Reference Pictures
