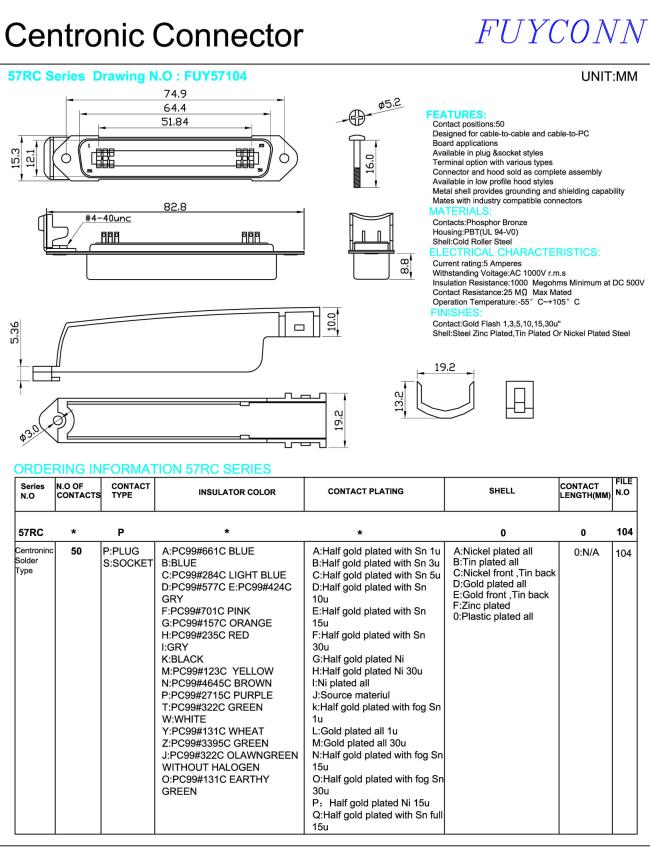

25 pairs Crimping Type 50 way Solder Male Plug Connector with 90 degree plastic cover

Product Features:

Product Type:

Centronics Solder Connector

Product Line:

Champ Connector

Gender:

Male

Connector Style:

Plug

Certerline :

2.16mm(0.85in)

Number of Position:

50 pin / 25 pairs

Contact Plating:

Gold Flash 1U", 3U", 5U" ,10U", 15U", 30U"

Insulator Color:

Grey or Blue

Shielded:

Yes

Orientation:

90 Degree Cable Exit

Mating connector lock:

Screwlocks

Common Features:

Designed for Cable-to-cable and cable-to-PC Board applications

Avilable in Plug & Socket Style

Terminal Option with various types

Connector and hood sold as complete assembly

Avilable in low profile hood style

Metal shell provides grounding and shielding capability

Mates with industry compatible connector

Materials

Contact Material:

Phosphor Bronze

Insulator:

PBT (UL 94-V0)

Housing Material:

Nickel Plated Steel

Electrical Character

Current Rating:

5Amp

Withstanding Voltage:

AC 1000v r.m.s

Insulation Resistance:

1000 Megohms Minimum at DC 500V

Contact Resistance:

25M∩ Max Mated

Operation Temperature:

 -55°C to +105°C

Application

1, VDSL Teleccom Equipment

2, Computer Peripherals

3, Communication Equipment

4, Huawei DSLAM
