50Pin SCSI Connector Male Solder Cup MDR Connector With Metal Hood

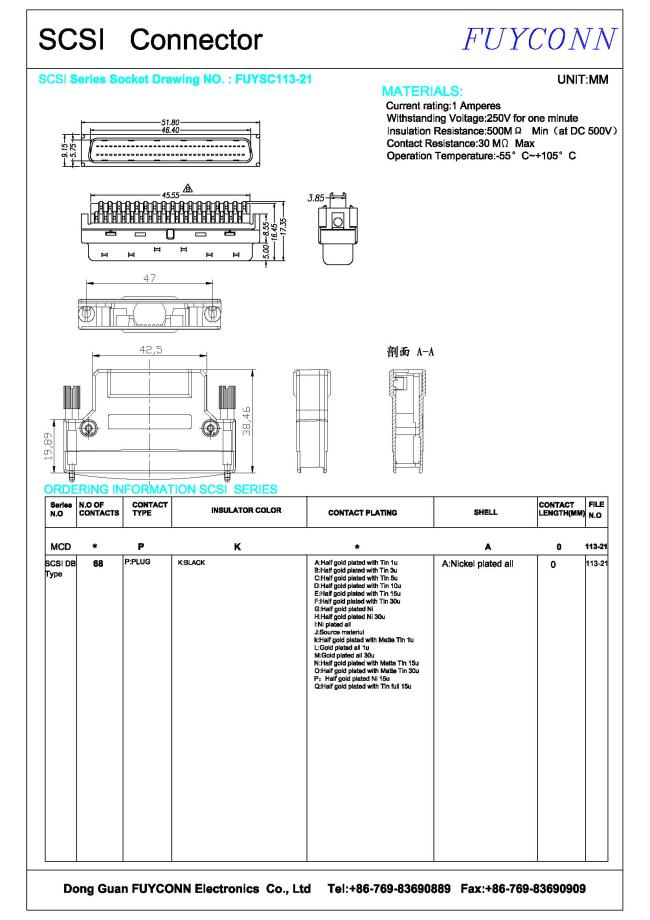

Catalog: SCSI CONNECTOR.pdf
MDR Cable Connector 50 Pin Solder Cup Male SCSI Connector W/ Metal Hood
Straight Dust 68pin Solder SCSI Connector, SCSI 68 Pin Male Mini Solder Type Servo Connector SCSI MDR Connector W/ Metal Cover
68 Pin Male Mini Solder Type Servo Connector with Plastic Dust Cover Sider Screw
SCSI is a kind of more special interface bus, equipped with a variety of types of peripherals to communicate. SCSI uses ASPI (Advanced SCSI Programming Interface) standard software interface to make the drive and the computer Internal SCSI adapters to communicate. SCSI interface is a widely used highspeed data transmission on minicomputer technology. SCSI interface has a wide range of applications, multitasking, large bandwidth, CPU occupancy rate, as well as hot and so on.
Materials
| Contact Material: | Brass |
| Insulator: | PBT |
| Housing Material: | ABS |
Electrical Specifications
| Current Rating: | 2Amp |
| Voltage rating: | AC 1000v for minute |
| Insulator Resistance: | 1000 MΩ min.at DC500V |
| Contact Resistance: | 30mΩ max. at DC 100MA |
| Operation Temperature: | -55°C to +105°C |
Technology Parameters
