2.16mm Centerline 57 CN Series 50Pin Centronics Female Connector DDK Connector

Price Negotiable

Price: Negotiable

MOQ: 10pcs

Delivery Time: 7-10 days

Brand: FUYCONN

Product Description

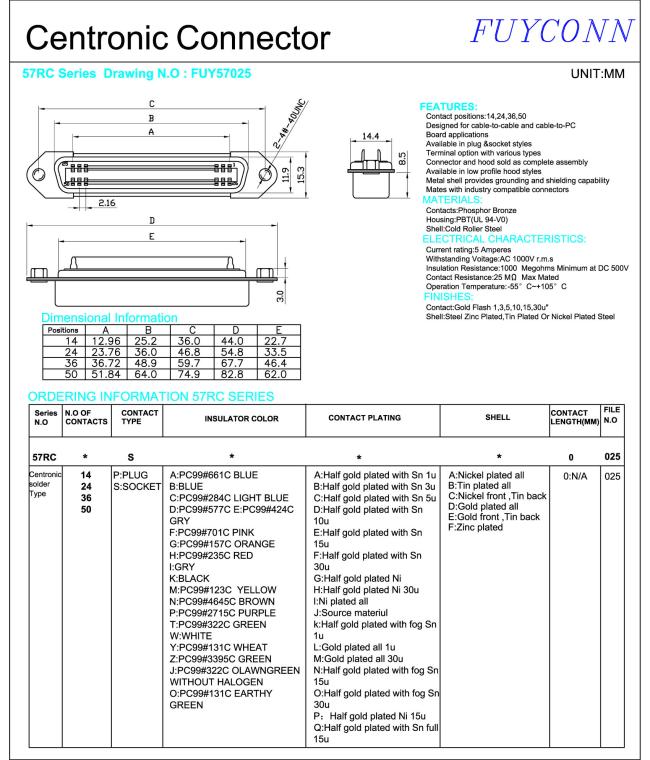

2.16mm Centerline 14pin 24pin 36Pin 50pin Centronics Female Connector DDK Connector

Detail Description:
Product Category: Centronic connector
Product Line: Champ Connector
Type: Centronic Solder Connector
Number of Terminal: 50pin 36 pin
Connector Style:Receptacle
Gender: Female
Centerline = 2.16mm [0.085in]
Insulator Color: Black or Blue
Insulator Material: PBT
Contact pin Material: Brass
Shield Plating: Nickel
Mounting Option: Back Rivet Hex Head Nuts

Common Features

Designed for Cable-to-cable and cable-to-PC Board applications
Board Application
Terminal Option with various types
Connector and hood sold as complete assembly
Avilable in low profile hood style
Metal shell provides grounding and shielding capability
Mates with industry compatible connector

Product Features

Product Type:	Centronics Solder Connector
Product Line:	Champ Connector
Gender:	Female
Connector Style:	Receptacle
Certerline :	2.16mm(0.85in)
Number of Position:	14pin 24pin 36pin 50pin
Contact Plating:	Gold Plating (1U", 3U", 5U" ,10U", 15U", 30U")
Insulator Color:	Black or Blue
Shielded:	Yes
Orientation:	Parllel Lines
Mating connector lock:	Screwlocks

Materials

Contact Material:	Brass
Insulator:	PBT (UL 94-V0)
Shell	Nickel Plated Steel

Electrical Character

Current Rating:	5Amp
Withstanding Voltage:	AC 1000v r.m.s
Insulation Resistance:	1000 Megohms Minimum at DC 500V
Contact Resistance:	25M∩ Max Mated
Operation Temperature:	-55°C to +105°C

Application

1, VDSL Teleccom Equipment
2, Computer Peripherals
3, Communication Equipment
4, RJ21 Cable
5, Cable to Panel
6, Cable to cable
7,Computer terminal
8,Telemetering
9,Test Equipment
10, Printer
