Champ 50 Pin DDK Female Receptacle Centronic Solder 90°Cable Outlet Connector with Matel Hood
Price:
Negotiable
MOQ:
10pcs
Delivery Time:
7-10 days
Brand:
FUYCONN
Product Description

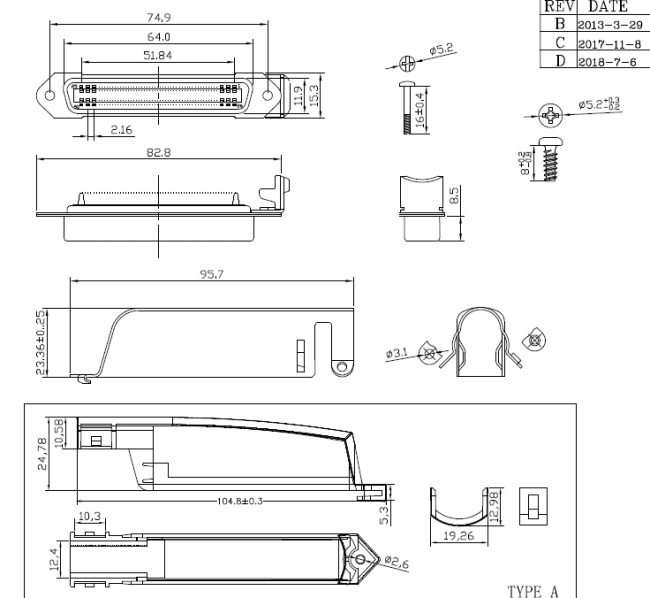

FUY57032 50Pin 180 Degree Metal Connector 25 paris Solder Female Type 2.16mm pitch
Detail Description
Product Category: Centronic connector
Product Line: Champ Connector
Type: Centronic Solder Connector
Number of Terminal: 50pin
Connector Style:Receptacle
Gender: Female
Centerline = 2.16mm [0.085in]
Insulator Color: Black or Blue
Insulator Material: PBT
Contact pin Material: Brass
Shield Plating: Nickel
Mounting Option: 90°Cable Exit Angle, Spring latches
Cover Style:90°Cable Outlet Metal Hood
Common Features
| Designed for Cable-to-cable and cable-to-PC Board applications | |
| Board Application | |
| Terminal Option with various types | |
| Connector and hood sold as complete assembly | |
| Avilable in low profile hood style | |
| Metal shell provides grounding and shielding capability | |
| Mates with industry compatible connector |
Product Features
| Product Type: | Centronics Solder Connector |
| Product Line: | Champ Connector |
| Gender: | Female |
| Connector Style: | Receptacle |
| Certerline : | 2.16mm(0.85in) |
| Number of Position: | 50 pin |
| Contact Plating: | Gold Plating (1U", 3U", 5U" ,10U", 15U", 30U") |
| Insulator Color: | Black or Blue |
| Shielded: | Yes |
| Orientation: | 90 Degree Cable Exit |
| Mating connector lock: | Screwlocks |
| Cover | Metal Hood |
Materials
| Contact Material: | Brass |
| Insulator: | PBT (UL 94-V0) |
| Shell | Nickel Plated Steel |
| Housing Material: | Nickel Plated Steel |
Electrical Character
| Current Rating: | 5Amp |
| Withstanding Voltage: | AC 1000v r.m.s |
| Insulation Resistance: | 1000 Megohms Minimum at DC 500V |
| Contact Resistance: | 25M∩ Max Mated |
| Operation Temperature: | -55°C to +105°C |
Application
| 1, VDSL Teleccom Equipment | |
| 2, Computer Peripherals | |
| 3, Communication Equipment | |
| 4, RJ21 Cable | |
| 5, Cable to Panel | |
| 6, Cable to cable | |
| 7,Computer terminal | |
| 8,Telemetering | |
| 9,Test Equipment | |
| 10, Printer |
