3 rows 3*32 96 Pin Female DIN41612 Connector Solderless Euro Connector w/ Board Lock
3 rows Solderless Euro Connector, 3*32Pin 96Pin Straight Press Pin DIN41612 Female Connector With Board Lock
32 Pin Receptacle B Type DIN 41612 Connector Euro Straight Terminals Connector
DIN 41612 is a DIN standard for electrical connectors that are widely used in rack based electrical systems. Standar disation of the connectors is a pre-requisite for open systems, where users expect components from different suppliers to operate together.
The DIN 41612 has been widely accepted as a standard for a variety of interconnection applications in the telecommunications and data markets worldwide. The most widely known use of DIN 41612 connectors is in the VME bus system. 96 pin DIN connectors with three rows(a, b, c) of contacts on 0.100"(2.54mm) square grid are available in wire-wrap or solder tail type terminations.
Detail Description:
| 1. Product Line: | DIN41612 Connector |
| 2. Product Name: | Eurocard connector |
| 3. Connector Type | PCB DIN 41612 Connector |
| 4. Connector Gender: | Female |
| 5. Number of Position: | 3*32P 96 pin |
| 6.Number of rows: | 3 rows |
| 7. Contact Material: | Brass |
| 8. Contact Plating: | 1U", 3U", 5U", 10U", 15U",30U" |
| 9. Insulation Material: | PBT |
| 10.Color | Gray |
| 11. Terminal Type | Press Pin / Solderless |
| 12. Pitch | 2.54mm |
Electrical Specifications
| Current Rating: | 2Amp |
| Voltage rating: | AC 1000v for minute |
| Insulator Resistance: | 1000 MΩ min.at DC500V |
| Contact Resistance: | 30mΩ max. at DC 100MA |
| 4. Operation Temperature: | -55°C to +105°C |

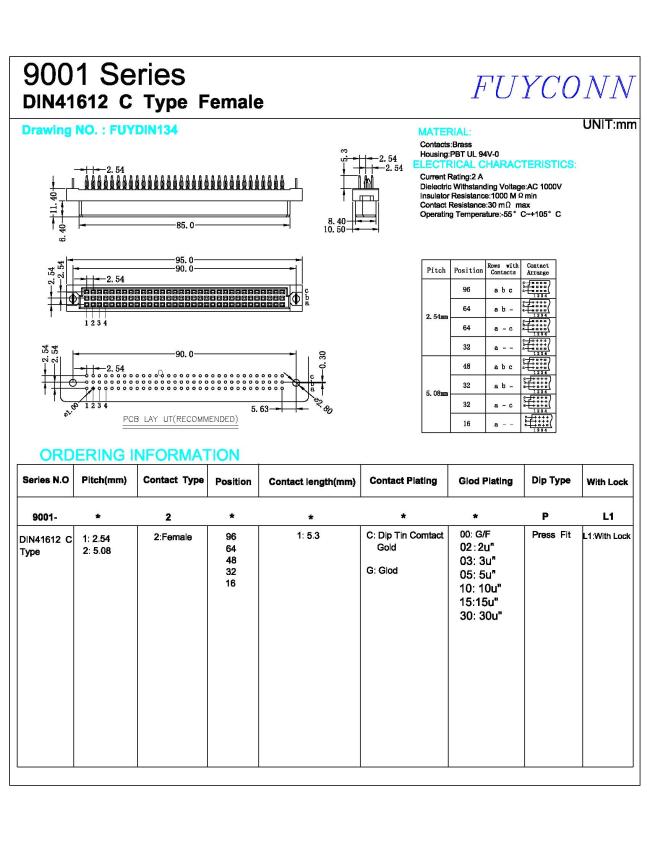

Technology Parameters
