20 Pin Eurocard Connector 3 rows 2*10P PCB Right Angle Male DIN41612 Connector
2.54mm 20pin PCB Right Angle 2Rows Terminal Male DIN41612 Connector, 2*10pin 20pin Right Angle PCB 3 Rows European connector
2 rows 20 Pin B Type Eurocard Connector Right Angle Male DIN 41612 Connector
DIN 41612 is a DIN standard for electrical connectors that are widely used in rack based electrical systems. Standar disation of the connectors is a pre-requisite for open systems, where users expect components from different suppliers to operate together. The most widely known use of DIN 41612 connectors is in the VMEbus system.
The DIN 41612 has been widely accepted as a standard for a variety of interconnection applications in the telecommunications and data markets worldwide. The most widely known use of DIN 41612 connectors is in the VME bus system.DIN connectors with three rows(a, b, c) of contacts on 0.100"(2.54mm) square grid are available in wire-wrap or solder tail type terminations. 5pin 10pin, 15pin 20pin,30pin, 32pin 48pin 64pin and 96pin are available.
Detail Description:
Product Category: Eurocard Connector
Product Line: DIN 41612 Connector
Connector Version: B Type
Type: Right Angle PCB Connector
Number of Rows: 3 Rows
Number of Terminal: 2 rows*10P=20P
PCB Mount Style:R/A
Connector Style:Plug
Gender: Male
Insulator Color: Grey
Insulator Material: PBT
Contact pin Material: Brass
Terminals Type: Right Angle
Application: PCB Board
Electrical Specifications
| Current Rating: | 2Amp |
| Voltage rating: | AC 1000v for minute |
| Insulator Resistance: | 1000 MΩ min.at DC500V |
| Contact Resistance: | 30mΩ max. at DC 100MA |
| 4. Operation Temperature: | -55°C to +105°C |

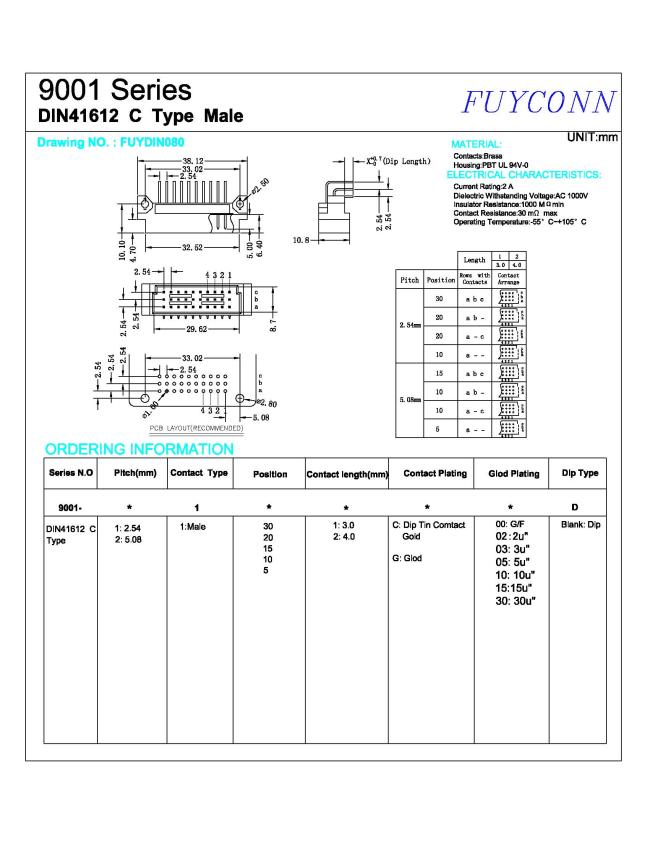

Technology Parameters
