57 CN Series Solder 24Pin Centronics Female Connector 50pin 36pin 14pin
Solder 50 Pin Centronics Female Connector With Hex Head Nuts
Product Features
|
Product Type: |
Centronics Solder Connector |
|
Product Line: |
Champ Connector |
|
Gender: |
Female |
|
Connector Style: |
Receptacle |
|
Certerline : |
2.16mm(0.85in) |
|
Number of Position: |
14 24 36 50 64 pin |
|
Contact Plating: |
Gold Plating (1U", 3U", 5U" ,10U", 15U", 30U") |
|
Insulator Color: |
Black or Blue |
|
Shielded: |
Yes |
|
Orientation: |
Flat |
Detail Description
Product Category: Centronic connector
Product Line: Champ Connector
Type: Centronic Solder Connector
Number of Terminal: 50 pin
Connector Style:Receptacle
Centerline = 2.16mm [0.085in]
Gender: Female
Insulator Material: PBT
Insulator Color: Black or Blue
Contact pin Material: Brass
Shield Plating: Nickel
Common Features
|
Designed for Cable-to-cable and cable-to-PC Board applications |
|
|
Board Application |
|
|
Terminal Option with various types |
|
|
Connector and hood sold as complete assembly |
|
|
Avilable in low profile hood style |
|
|
Metal shell provides grounding and shielding capability |
|
|
Mates with industry compatible connector |
Materials
|
Contact Material: |
Brass |
|
Insulator: |
PBT (UL 94-V0) |
|
Shell |
Nickel Plated Steel |
|
Housing Material: |
Nickel Plated Steel |
Electrical Character
|
Current Rating: |
5Amp |
|
Withstanding Voltage: |
AC 1000v r.m.s |
|
Insulation Resistance: |
1000 Megohms Minimum at DC 500V |
|
Contact Resistance: |
25M∩ Max Mated |
|
Operation Temperature: |
-55°C to +105°C |
Application
|
1, VDSL Teleccom Equipment |
|
|
2, Computer Peripherals |
|
|
3, Communication Equipment |
|
|
4, RJ21 Cable |
|
|
5, Cable to Panel |
|
|
6, Cable to cable |
|
|
7, Computer terminal |
|
|
8, Telemetering |
|
|
9, Test Equipment |
|
|
10, Printer |

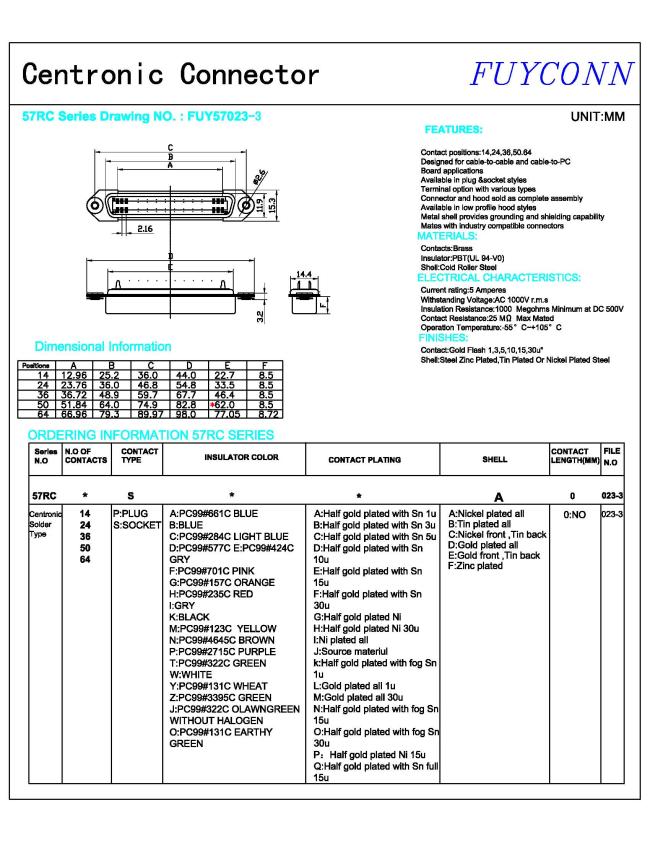

Technology Parameters
