Centronic TYCO 25 pairs Female Receptacle IDC Champ Connector with 180 Degree Plastic Cover
Centronic TYCO 25 Pair Female Receptacle IDC Champ Connector with 180 Degree Plastic Cover

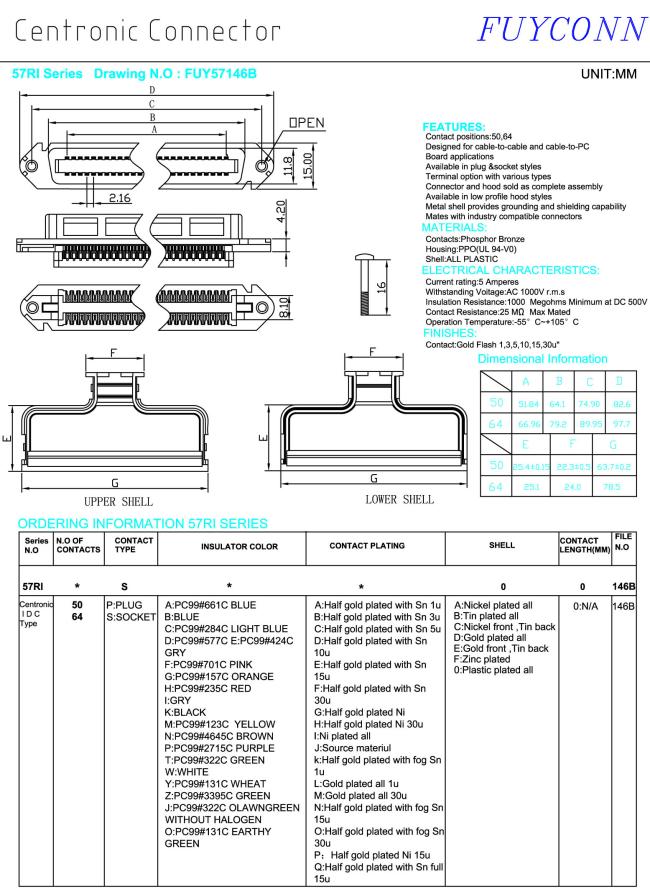

FUY57146B 180 Degreee 2.16 pitch Champ 50 Pin Tyco AMP IDC Connector Female Receptacle 25 Pairs
The Centronics connector has a plastic bar in the center of the connector body that holds the contact pins. The Centronics 50-pin connector is arranged in two rows of pins each with 25 contacts. This connector is held in place by bail locks. The Centronics 50 connector is most often used by older SCSI-1 devices (scanners, storage devices, etc.). A slight variant of the Centronics 50 connector is used in voice/data applications. This variant is commonly called a Telco connector.
Detail Description
Product Category: Centronic connector
Product Line: Champ Connector
Type: Centronic IDC Connector
Number of Terminal: 50 pin
Connector Style:Receptacle
Gender: Female
Insulator Color: Black
Insulator Material: PPO
Contact pin Material: Phosphor Bronze
Centerline = 2.16mm [0.085in]
Mounting Option: 180 Degree Cable Outlet
Cover: Plastic Cover or No Cover both are available
Application: RJ21 Cable
Common Features
| Designed for Cable-to-cable and cable-to-PC Board applications | |
| Avilable in Plug & Socket Style | |
| Terminal Option with various types | |
| Connector and hood sold as complete assembly | |
| Avilable in low profile hood style | |
| Metal shell provides grounding and shielding capability | |
| Mates with industry compatible connector |
Product Features
| Product Type: | Centronics IDC Connector |
| Product Line: | Champ Connector |
| Gender: | Female |
| Connector Style: | Receptacle |
| Certerline : | 2.16mm(0.85in) |
| Number of Position: | 50 pin |
| Contact Plating: | Gold Flash 1U", 3U", 5U" ,10U", 15U", 30U" |
| Insulator Color: | Black |
| Shielded: | Yes |
| Orientation: | 180 Degree Cable Exit |
| Mating connector lock: | Screwlocks |
Materials
| Contact Material: | Phosphor Bronze |
| Insulator: | PPO (UL 94-V0) |
| Housing Material: | Plastic |
Electrical Character
| Current Rating: | 5Amp |
| Withstanding Voltage: | AC 1000v r.m.s |
| Insulation Resistance: | 1000 Megohms Minimum at DC 500V |
| Contact Resistance: | 25M∩ Max Mated |
| Operation Temperature: | -55°C to +105°C |
Application
| 1, VDSL Teleccom Equipment | |
| 2, Computer Peripherals | |
| 3, Communication Equipment | |
| 4, RJ21 Cable | |
| 5, Cable to Panel | |
| 6, Cable to cable | |
| 7,Computer terminal | |
| 8,Telemetering | |
| 9,Test Equipment | |
| 10, Printer |
Advantage
1,ROHS compliant, UL-approved
2,High quality, Competitive price
3,Quick delivery time
4,Free sample available in 2 days
