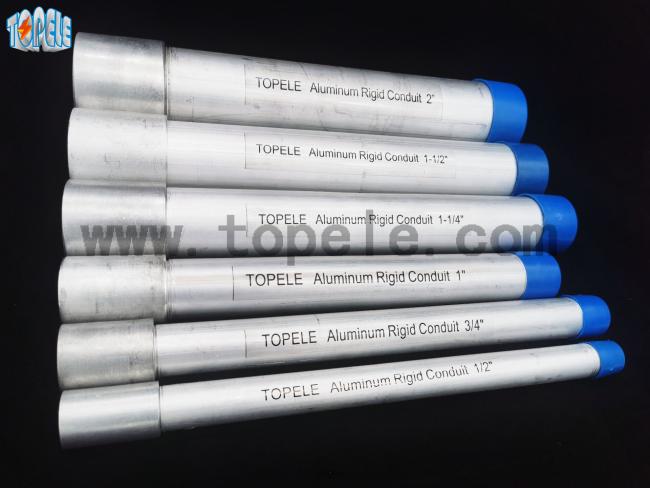

Aluminum Rigid Electric IMC Conduit And Fittings Strong Corrosion Resistance
Easy to install 1/2"- 4” Aluminum Rigid conduit with Strong corrosion resistance
PDF Catalogue:
1.Material: Aluminum
2.Thickness:2.6-6.8mm
3.Size :1/2''-4''
4.Finish: Surface Oxidation Treatment
5.Standard: UL6A ANSIS80.8 WW-C-540C
Advantages:
1.Costs much Less than Steel Conduit and smae as extremely durable
2.Light weight is nearly 1/3 as much as Steel
3.Excellent corrosion resistance, non-magnetic, moisture
4.Easy to install and Low maintenance
5.Recyclable, environmentally friendly materials
Specification:
| Size | Metric Designator |
Nominal Outside | Nominal Wall Thickness |
Approcx.Wt.Per 100 Ft.(30.5M) |
Qty.In Master Bundle |
||||
| in | mm | in | mm | ib | kg | pcs | |||
| 1/2'' | 16 | 0.84 | 21.3 | 0.104 | 2.6 | 12.7 | 28.1 | 127 | |
| 3/4'' | 21 | 1.05 | 26.7 | 0.107 | 2.7 | 17 | 37.4 | 91 | |
| 1'' | 27 | 1.315 | 33.4 | 0.126 | 3.2 | 24.7 | 54.5 | 61 | |
| 1-1/4'' | 35 | 1.66 | 42.2 | 0.133 | 3.4 | 32.5 | 71.6 | 61 | |
| 1-1/2'' | 41 | 1.9 | 48.3 | 0.138 | 3.5 | 40.2 | 88.7 | 37 | |
| 2'' | 53 | 2.375 | 60.3 | 0.146 | 3.7 | 53.8 | 118.5 | 37 | |
| 2-1/2'' | 63 | 2.875 | 73.03 | 0.193 | 4.9 | 85.8 | 189.2 | 19 | |
| 3'' | 78 | 3.5 | 88.92 | 0.205 | 5.2 | 111.7 | 246.3 | 19 | |
| 3-1/2'' | 91 | 4 | 101.6 | 0.215 | 5.5 | 134.1 | 295.6 | 10 | |
| 4'' | 103 | 4.5 | 114.3 | 0.225 | 5.7 | 158.9 | 350.2 | 10 | |
| 5'' | 129 | 5.563 | 141.3 | 0.245 | 6.2 | 217.3 | 479 | 7 | |
| 6'' | 155 | 6.625 | 168.3 | 0.266 | 6.8 | 286 | 630.5 | 7 | |
Competitive Advantage:
+Quick Delivery: within 30 days for one 20ft container.
+Competitive Price
+ Good Quality: ISO certificate approval
+Best Service: fast delivery, strong package, good price, timely and effective communication
+Powerful Solution: fast and effective solution to
