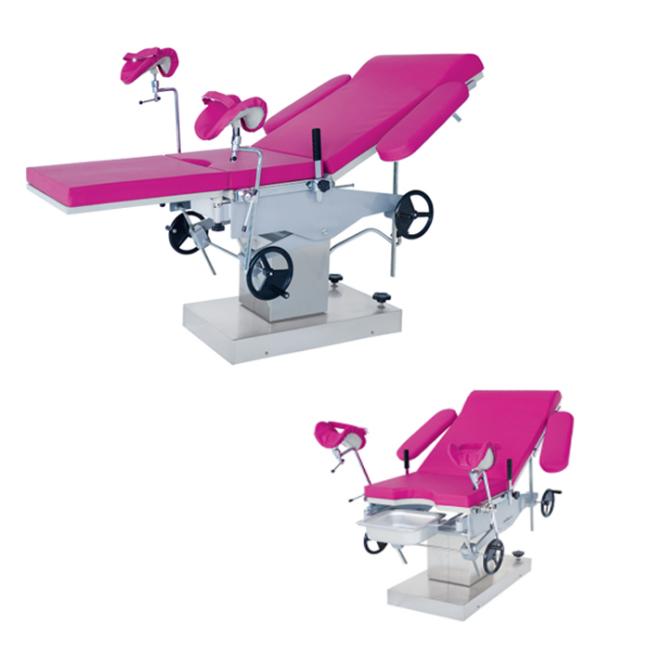

Stainless Steel Hydraulic Operating Room Tables,Medical Obstetric Delivery Table (ALS-OB114)

Stainless Steel Electric gynecology Examination Tables, Medical Obstetric Delivery Table (ALS-OB114)

 Parameter

-Hydraulic surgical table with a total of 4 sections plus kidney elevator

-Mobile base with antistatic locking castors

-Head-rest, back-rest, pelvis and leg sections are made of x-ray permeable material

-Base cover are made of stainless steel

-Table height adjustable by means of foot pedal

-All table movements, except legs section, can be operated at the head-end position by means of two cranks back

-Back section supported by pneumatic spring and controlled from both side levers.

-A fasten tape strip on the both side of the table top sections permits instant application and removal of thick 50mm mattress pads

-Maximum patient weight allowed: 135 kg

-Dimensions: 2100 X 480 X 800 – 1050 mm (length X width X height)

-Movements:

Trendelenburg 20 degree and reverse trendelenburg 30 degree

Lateral tilting (right/left): 18 degree

Backrest: Up 0^o ~ 70^o / Down 0^o ~ 17^o

Headrest: Up 0^o ~ 45^o / Down 0^o ~ 90^o

Leg section: Up 0^o ~ 25^o / Down 0^o ~ 90^o

Kidney elevator: 20mm

Standard accessories including per unit of Operating Obstetric Delivery Table:

1 x Accessories support (Lateral & shoulder supports – 1set each)

1 x Anaesthetic screen frame

1 x Pair of arm supports

1 x Pair of legs supports

1 x safety belt (patient body strap)

Operation & Service Manual – 1 set for each (during supply of the item from the manufacturer.

Quality Standard: CE/ISO13485/ISO9001
