ASTM A269 TP316L / UNS S31603 / 1.4404 Stainless Steel Tube Bright Annealed Tube
ASTM A269 TP316L / UNS S31603 / 1.4404 Bright Annealed Stainless Steel Tube
A STAINLESS STEEL 316L BRIGHT ANNEALED TUBE is a corrosion-resistant pipe defined by its low carbon content (0.03% max) and 2-3% molybdenum, enhancing resistance to chlorides and acids. The "Bright Annealed" finish means it was heat-treated in a controlled, oxygen-free atmosphere, resulting in a smooth, shiny, scale-free surface without needing pickling. This pristine surface is ideal for hygienic, high-purity, and aesthetic applications in industries like pharmaceuticals, food and beverage, and semiconductors, where both superior corrosion resistance and a clean, reflective appearance are critical.
- Superior Corrosion Resistance: Especially against chlorides and in welded conditions.
- Excellent Surface Finish: Clean, smooth, and highly reflective.
- High Hygienic Quality: Easy to sterilize and clean.
- Good Mechanical Properties: Strong and ductile.
- Good Weldability: Can be readily welded using common techniques.
ASTM A269 TP316L Bright Annealed Tube Specifications
| Specifications | ASME SA/ASTM A213 / A249 / A269 / A312 |
| Dimensions | ASTM, ASME |
| Material Grades |
Dtainless steel grades: Nickel Alloy Steel grades: monel 400, inconel 600, 625, 825, etc |
| Schedule | SCH 10, SCH20, SCH30, SCH40, STD, SCH60, XS, SCH80, SCH120, SCH140, SCH160, XXS |
| Wall Thickness | Schedule 5S - Schedule XXS. |
| Size | 1/2"NB - 24"NB |
| Length | Single Random, Double Random & Cut Length |
| Types | Seamless/weld |
| Form | Round, Square, Rectangular, Hydraulic Etc |
ASTM A269 TP316L Bright Annealed Tube Stainless Steel Seamless/Welded Tube
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
| SS 316L | 1.4404 / 1.4435 | S31603 | SUS 316L | 316S11 / 316S13 | 03Ch17N14M3 / 03Ch17N14M2 | Z3CND17‐11‐02 / Z3CND18‐14‐03 | X2CrNiMo17-12-2 / X2CrNiMo18-14-3 |

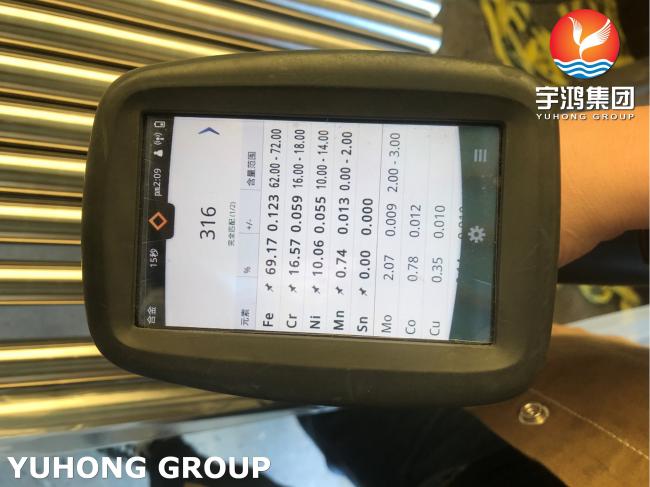

ASTM A269 TP316L Bright Annealed Tube Chemical Composition Stainless Steel Seamless/Welded Tube
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | Fe |
| SS 316L | 0.035 max | 2.0 max | 1.0 max | 0.045 max | 0.030 max | 16.00 - 18.00 | 2.00 - 3.00 | 10.00 - 14.00 | 68.89 min |
ASTM A269 TP316L Bright Annealed Tube Mechanical Properties Stainless Steel Seamless/Welded Tube
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.0 g/cm3 | 1399 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
Applications
Stainless steel bright annealed tube is broadly used in applications (such as instruments, equipments, machinery) where requires high cleanliness inside surface, high precision dimensions, high corrossion resistance in various industries such as gas, chemical, shipbuilding, automobile,etc.
1. Food industry
2. chloride environments
3. Fasteners
4. Pharmaceuticals
5. Marine applications
6. Architectural applications
7. Medical implants which comprise pins, screws and orthopedic implants like total hip and knee replacements.
