What is ASTM A694?
ASTM A694 is the standard specification for carbon and alloy steel forgings for pipe flanges, fittings, valves, and parts for high-pressure transmission service which are manufactured for use with high-strength transmission-service pipe.
ASTM A694 F52 Flanges is a method of connecting pipes, valves, pumps and other equipment to form a piping system. It also provides easy access for cleaning, inspection or modification.
The ASTM A694 F52 forgings can be furnished in carbon steel, low alloy steel or alloy steel. The steel shall be made by either open hearth, electric furnace, or basic oxygen process and it shall be fully deoxidized. Its forged flanges and forged fittings can be readily manufactured from ingots, blooms, billets, slabs, or bars. However, A694 F52 flanges shall not be machined directly from plate nor from solid bar stock since sufficient hot working(forging) is necessary to develop a wrought structure throughout the part.
Weld Neck Flanges
Weld Neck Flanges are a very common type of pipe flanges used in various industrial applications. They have a long tapered hub and are often used for high pressure applications.

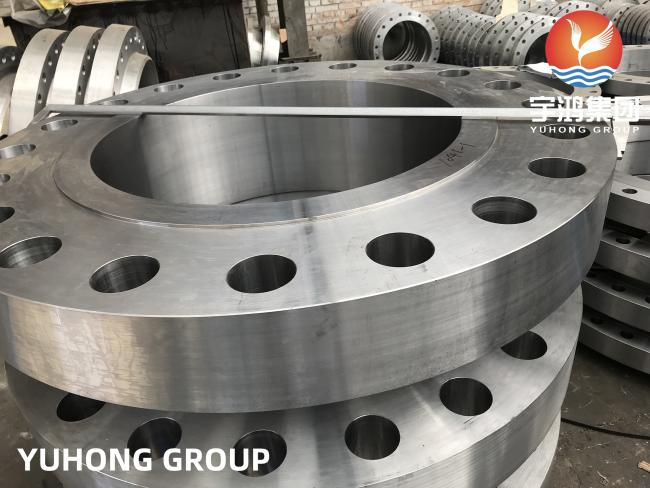

The ASTM A694 F52 Weld Neck Flanges features a long tapered hub which can be welded with a pipe. This type of A694 F52 WNRF Flanges is normally used in high pressure as well as high / low temperatures applications, which require an unrestricted flow of the fluid that is being conveyed by the piping system. The bore of the ASTM A694 F52 Flanges matches with the bore of the pipe.
YUHONG is a fast growing organization, engaged in manufacturing, supply and export of welding neck flanges, industrial weld neck flanges and forged flanges. Our weld neck flanges are drilled with the wall thickness of flange having the same dimensions of pipe. Flanges for heavier pipes have smaller bore, while flanges of lighter pipes have larger bore.
Chemical Composition:
| Carbon [C] | ≤0.30 |
| Manganese [Mn] | ≤1.60 |
| Phosphorus [P] | ≤0.025 |
| Sulfur [S] | ≤0.025 |
| Silicon [Si] | 0.15-0.35 |
Mechanical Properties:
| Element | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| A694 F52 | 415 | 315 | 20% |
A694 Grade F52 Physical Properties:
| ASTM A694 Grade | Yield Strength min. | Tensile Strength min. | Elongation min. | ||
| MPa | ksi | MPa | ksi | % | |
| A694 Grade F52 | 360 | 52 | 455 | 66 | 20 |
ASTM A694 F52 Flange Application:
-Oil and Gas Industries
-Food Processing Industries
-Equipments
-Pipeline
-Power Industries
-Ship Building Industries
-Paper Industries
-Cement Industries
-Chemical Industries
Grade F52 Carbon Steel Pipe Flange Pressure Class
| ASME/ ANSI B 16.5 | ASTM A694 F52 Welding Neck Flanges, ASTM A694 F52 Slip on Flanges, Blind Flanges, High Hub Blind Flanges, Socket Weld Flanges, ASTM A694 F52 Lap Joint Flanges, Threaded Flanges, ASTM A694 F52 Ring Type Joint Flanges |
| PRESSURE CLASS | 150, 300, 400, 600, 900, 1500, 2500 |
| BS 4504 SEC 3.1 | ASTM A694 F52 Welding Neck Flange, ASTM A694 F52 Hubbed Slip on Flange, ASTM A694 F52 Hubbed Threaded Flange, Lapped Pipe End Flange, ASTM A694 F52 Plate Flange, Loose Plate Flange, Loose Plate With Weld Neck Flange, Blank Flange |
| PRESSURE CLASS | PN 2.5 TO PN 40 |
| ASME/ANSI B 16.47 | ASTM A694 F52 Welding Neck Flange, ASTM A694 F52 Blind Flange [Series A & B] |
| PRESSURE CLASS | 75, 150, 300, 400, 600, 900 |
| ASME/ANSI B 16.36 | ASTM A694 F52 Welding Neck Flange, ASTM A694 F52 Slip on Flange, ASTM A694 F52 Threaded Flange |
| BS 4504[PART 1] | ASTM A694 F52 Welding Neck Flange, ASTM A694 F52 Hubbed Slip-On Hubbed Threaded, Plate Flange, ASTM A694 F52 Loose Plate With Weld On Plate Collar, Blank Flange |
| PRESSURE CLASS | PN 2.5 TO PN 400 |
| BS10 | ASTM A694 F52 Welding Neck Flange, ASTM A694 F52 Plate Slip-On Flange, ASTM A694 F52 Screwed Boss Flange, Slip-On Boss Flange, ASTM A694 F52 Blind Flange |
| TABLE | D, E, F, H |
| DIN FLANGES | DIN 2527, 2566, 2573, 2576, 2641,2642, 2655, 2656, 2627, 2628, 2629, 2631, 2632, 2633, 2634, 2635, 2636, 2637,2638, 2673 |
| BS 1560 BOSS | ASTM A694 F52 Welding Neck Flange, Socket Welding Flange, ASTM A694 F52 Slip-On Flange, ASTM A694 F52 Blind Flange, ASTM A694 F52 Screwed Boss Flange, ASTM A694 F52 Lapped Flange |
| PRESSURE CLASS | 150, 300, 400, 600, 900, 1500, 2500 |
| PRESSURE CLASS | PN 6 TO PN 100 |
