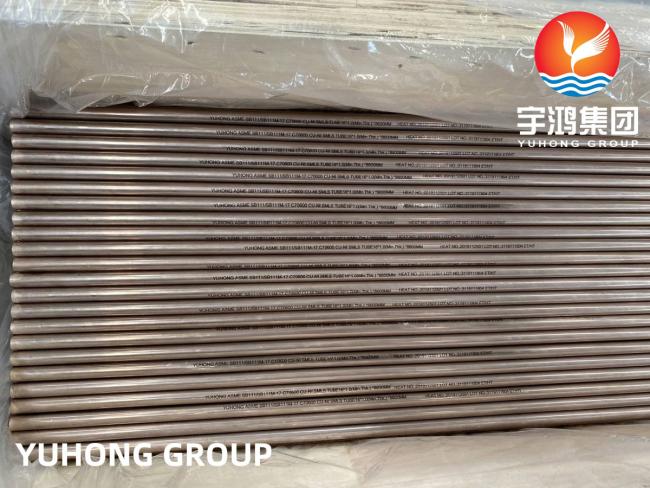

ASTM B111 C70600 Copper Nickel Alloy Seamless Tube For Condenser
ASTM B111 C70600 Copper Nickel Alloy Seamless Tube For Condenser
The ASTM B111 C70600 Copper Nickel Seamless Tube are widely used for marine applications due to their excellent resistance to seawater corrosion, low macrofouling rates, and good fabricability.
Copper Nickel C70600 is also known as Copper Nickel 90/10 because it is made up of 10% nickel or as ASTM B111 and ASME SB111. C70600 is known for its moderate strength, weldability, and formability. The inclusion of controlled quantities of iron and manganese also give the 90/10 alloy an extraordinary resistance to general corrosion and stress cracking, as well as to erosion and impingement due to turbulent water containing air bubbles and silt flowing at high velocities.
Chemical Composition of C70600
| Element | Content (%) |
|---|---|
| Cu | 88.7 |
| Fe | 1.3 |
| Ni | 10.0 |
C70600 Equivalent
| STANDARD | UNS | WERKSTOFF NR. |
| Copper Nickel 90/10 Pipe | C70600 | 2.0872 |
Physical Properties
| Properties | Metric | Imperial |
|---|---|---|
| Density | 8.94 g/cm3 | 0.323 lb/in3 |
Why Are Copper Nickel Tubing Used In Heat Exchangers?
Copper nickel tubing is designed with a superior chemical composition allowing them to work well in harsh conditions. These tubes can handle different pressures and temperatures, which is very essential for running heat exchangers. The tubing devices have excellent fatigue strength and mechanical properties, allowing them to withstand the different conditions in this system.
Mechanical properties
| Properties | Metric | Imperial |
|---|---|---|
| Tensile strength, ultimate | 303-414 MPa | 43900-60000 psi |
| Tensile strength, yield (depending on temper) | 110-393 MPa | 16000-57000 psi |
| Elongation at break (in 254 mm) | 42.00% | 42.00% |
| Machinability (UNS C36000 (free-cutting brass) = 100%) | 20% | 20% |
| Shear modulus | 52.0 GPa | 7540 ksi |
| Poisson’s ratio | 0.34 | 0.34 |
| Elastic modulus | 140 GPa | 20300 ksi |
Advantages of CuNi Tubes
-Simple alloying system with good weldability
-Excellent ductility and toughness
-Outstanding erosion corrosion performance
-Resistant to uniform and localised corrosion
-No effect of ambient seawater temperatures
-No effect of seawater chlorination
-Resistant to biofouling
-Resistant to stress-corrosion cracking
-Low maintenance costs
Applications:
-Hydraulic lines
-Fish cages for aquaculture
-Heat exchangers and condensers
-Desalination units
-Sea water pipework
-Tubes for power plants and ships
-Offshore fire water systems
-Pumps, valves, sheathing and fittings for ship hulls
-Desalination units
-Hydraulic lines
-Fish cages for aquaculture
-Heat exchangers and condensers
-Sea water pipework
-Offshore fire water systems
-Tubes for power plants and ships
-Pumps, valves, sheathing and fittings for ship hulls
