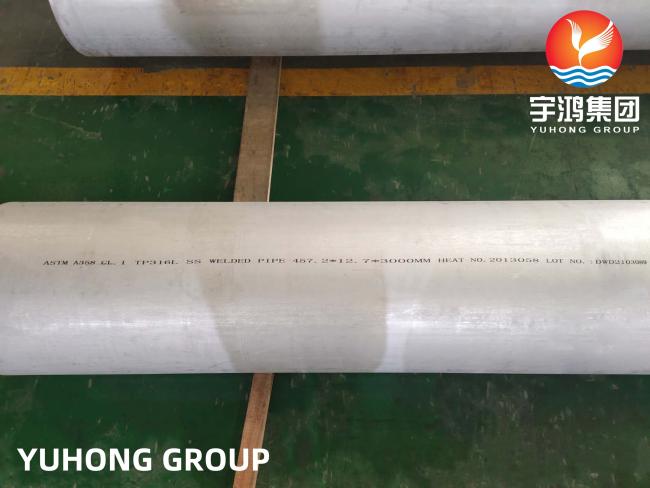

ASTM A358 Class 1 TP316L / 1.4404 / X2CrNiMo17132 Stainless Steel Welded Pipe
ASTM A358 Class 1 TP316L/1.4404/X2CrNiMo17132, Stainless Steel Welded Pipe
YUHONG has more than 30 years on stainless steel welded pipe product, we have exported our product to more than 55 different counties and got good feedback,if you are interested in A358 CL 1 welded pipe, please free to contact with us, we will be assisted 24/7.
ASTM A358 TP316L EFW Pipes Chemical Composition
Typical compositional ranges for grade 316L stainless steels Pipes
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N | |
| 316 | Min | – | – | – | 0 | – | 16.0 | 2.00 | 10.0 | – |
| Max | 0.08 | 2.0 | 0.75 | 0.045 | 0.03 | 18.0 | 3.00 | 14.0 | 0.10 | |
| 316L | Min | – | – | – | – | – | 16.0 | 2.00 | 10.0 | – |
| Max | 0.03 | 2.0 | 0.75 | 0.045 | 0.03 | 18.0 | 3.00 | 14.0 | 0.10 | |
| 316H | Min | 0.04 | 0.04 | 0 | – | – | 16.0 | 2.00 | 10.0 | – |
| max | 0.10 | 0.10 | 0.75 | 0.045 | 0.03 | 18.0 | 3.00 | 14.0 | – |
ASTM A358 TP 316L EFW Pipes Mechanical Properties
Mechanical Properties of 316L grade stainless steel
| Grade | Tensile Str (MPa) min |
Yield Str 0.2% Proof (MPa) min |
Elong (% in 50mm) min |
Hardness | |
| Rockwell B (HR B) max | Brinell (HB) max | ||||
| 316 | 515 | 205 | 40 | 95 | 217 |
| 316L | 485 | 170 | 40 | 95 | 217 |
| 316H | 515 | 205 | 40 | 95 | 217 |
ASTM A358 TP 316L EFW Pipes Properties
Physical properties of 316L grade stainless steel in the annealed condition
| Grade | Density (kg/m3) |
Elastic Modulus (GPa) |
Mean Co-eff of Thermal Expansion (µm/m/°C) | Thermal Conductivity (W/m.K) |
Specific Heat 0-100°C (J/kg.K) |
Elec Resistivity (nΩ.m) |
|||
| 0-100°C | 0-315°C | 0-538°C | At 100°C | At 500°C | |||||
| 316/L/H | 8000 | 193 | 15.9 | 16.2 | 17.5 | 16.3 | 21.5 | 500 | 740 |
Application:
Food and beverage industry
Construction industry
Nuclear,
Boiler
Petroleum and petrochemical Applications
...
