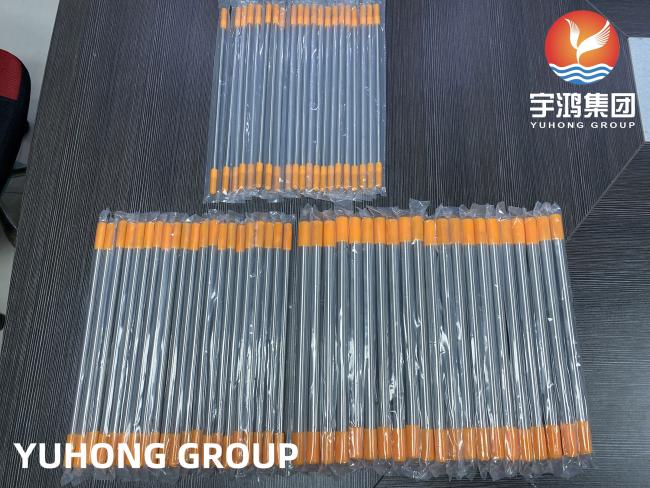

ASTM A269 TP316L 1.4404 Stainless Steel SMLS Bright Annealed Tube
ASTM A269 TP316L 1.4404 Stainless Steel SMLS Bright Annealed Tube
ASTM A269 Tp316L is a grade of seamless and welded austenitic steel with nominal wall thickness that is designed with 316 austenitic stainless steel. The ASTM A269 TP316L Tube is composed of an outstanding content of chromium, nickel, and molybdenum. The content embedded with these modules gives them excellent corrosion and oxidation resistance properties.
1. Process Method: Cold Drawn, Cold Rolled
2. Surface Finish: Bright Annealed
3. Materials: TP304/L/H; TP316/L/Ti; TP309S; TP310S; TP321/H; TP317L; TP347/H, etc
4. Ends: Beveled or Plain
Our range of Austenitic Stainless Steel 316 / 316L Bright Annealed Tubes is in conformation with the international quality standards and is thoroughly tested on various parameters before delivering to the clients. Designed according to the national and international standards, this Stainless Steel Bright Annealed Tubing is offered in made-to-order length sizes and shapes to our well-regarded customers.
Chemical Composition:
|
GRADE |
|
C |
MN |
SI |
P |
S |
CR |
MO |
NI |
N |
|---|---|---|---|---|---|---|---|---|---|---|
|
316L |
Min |
- |
- |
- |
- |
- |
16.0 |
2.00 |
10.0 |
- |
|
Max |
0.03 |
2.0 |
0.75 |
0.045 |
0.03 |
18.0 |
3.00 |
14.0 |
0.10 |
| GRADE | TENSILE STR (MPA) MIN |
YIELD STR 0.2% PROOF (MPA) MIN |
ELONG (% IN 50MM) MIN |
HARDNESS | |
|---|---|---|---|---|---|
| ROCKWELL B (HR B) MAX | BRINELL (HB) MAX | ||||
|
316L
|
485
|
170
|
40
|
95
|
217
|
Physical Properties:
| GRADE | DENSITY (kg/m³) |
ELASTIC MODULUS (GPA) |
MEAN CO-EFF OF THERMAL EXPANSION (ΜM/M/°C) | THERMAL CONDUCTIVITY (W/M.K) |
SPECIFIC HEAT 0-100°C (J/KG.K) |
ELEC RESISTIVITY (NΩ.M) |
|||
|---|---|---|---|---|---|---|---|---|---|
| 0-100°C | 0-315°C | 0-538°C | AT 100°C | AT 500°C | |||||
| 316L | 8000 | 193 | 15.9 | 16.2 | 17.5 | 16.3 | 21.5 | 500 | 74 |
|
GRADE
|
UNS
NO |
OLD BRITISH
|
EURONORM
|
SWEDISH
SS |
JAPANESE
JIS |
||
|---|---|---|---|---|---|---|---|
|
BS
|
EN
|
NO
|
NAME
|
||||
|
316L
|
S31603
|
316S11
|
-
|
1.4404
|
X2CrNiMo17-12-2
|
2348
|
SUS 316L
|
Applications:
-Chemical and petrochemical
-Power generation
-Renewable energy
-Pulp and Paper
-Process piping
-Pharmaceutical
-Food and beverage
-Oil and gas
-Mining
-Water/waste
-Marine Industry
-Fertilizers
