Aluminum Brass ASTM B111 C68700 Seamless Tube Corrosion Resistant
Aluminum Brass ASTM B111 C68700 Seamless Tube Corrosion Resistant
What is ASTM B111 C68700 tube?
Continuous B111 grade C68700 Aluminum Brass Pipe is robust and corrosion-resistant. In industries such as air conditioning units, heat exchanger tube, freezers, the petrochemical sector, power plants, etc., ASTM B111 C68700 Tube is frequently used.
Condenser pipes frequently uses the material C68700 because it withstands the effects of salt water and black water moving at incredible velocities. The significant resistance of C68700 to compressive damage is its primary feature.
For usage in marine and terrestrial power stations with significant cooling water velocity, pipes made of this alloy are advised. In “Seawater desalting plants,” C68700 aluminum brass pipes are frequently utilized. The UNS C68700 tube is thin, has excellent heat conductivity, and has a significant of low-temperature strength.
YUHONG is one of the biggest ASTM B111 C68700 tubes manufacturer, supplier and exporter in China. We are supplying ASTM B111 C68700 tubes to the leading copper tube industry around the world.
Our ASTM B111 C68700 tube is widely used in the surface condenser, heat exchanger, and evaporators. They offer high strength, excellent corrosion resistance, and good creep resistance at elevated temperatures.
We are glad to supply your needs whatever the sizes, shapes, dimensions you want for ASTM B111 C68700 tubes. YUHONG will help you with all your ASTM B111 C68700 tubes necessities. Contact one of our experts today to find out how we can meet your tubing needs.
C68700 Chemical Composition:
| Chemical Composition | |
| Elements | Composition, % |
| Cu, incl. Ag | 76.0-79.0 |
| Sn | – |
| Al | 1.8-2.5 |
| Ni, incl. Co | – |
| Pb | 0.07 max |
| Fe | 0.06 max |
| Zn | Balance |
| Mn | 0.02-0.06 |
Equivalent Material:
|
Material Designation |
Corresponding Material Symbol |
||||
|
GB/T8890 |
ASTM B111 |
BS2871 |
JIS H3300 |
DIN1785 |
|
|
Aluminums Brass |
HAL77-2 |
C68700 |
CZ110 |
C6870 |
CuZn20Al2 |
Tensile Requirements:
| Copper or Copper Alloy UNS NO. | Temper Designation | Tensile Strength | Yield Strength | |
| Standard | Former | Min. ksi | Min. ksi | |
| C68700 | O61 | Annealed | 50 | 18 |
ASTM B111 C68700 Mechanical Properties:
| Copper or Copper Alloy UNS No. | Temper Designation | Annealing temperature, °C | Tensile Strength, min | Yield Strength, min | HV | |||
| Code | Name | ksi | Mpa | ksi | Mpa | |||
| C68700 | O61 | Annealed | above 650 | 50 | 345 | 18 | 125 | 150 |
Material Testing
-Mechanical Testing Such as Tensile of Area
-Hardness Test
-Chemical Analysis – Spectro Analysis

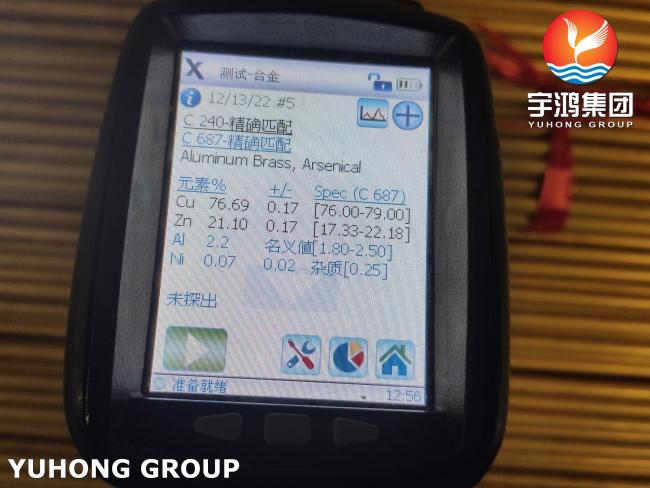

-Positive Material Identification – PMI Testing
-Flattening Test
-Micro and MacroTest
-Pitting Resistance Test
-Flaring Test
-Intergranular Corrosion (IGC) Test
Applications:
-Food Processing Industry
-Fabrication Industry
-Oil and Gas Industry
-Chemical Industry
-Plumbing
-General Purpose Applications
-Heating
-Water Supply Systems
-Power Plant
-Paper & Pulp Industry
