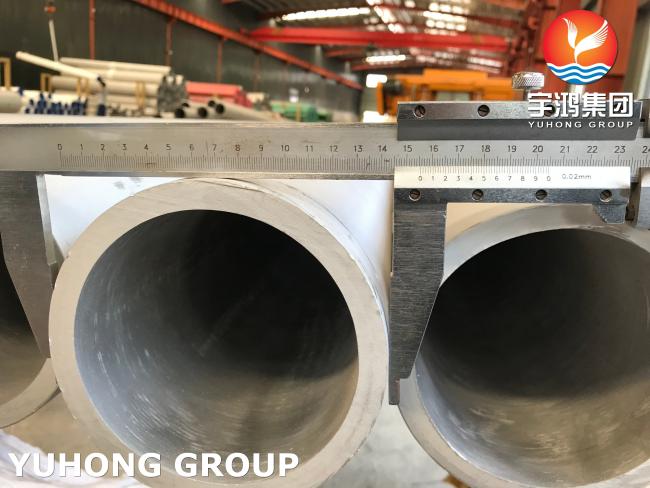

JIS G3459 SUS304 Stainless Steel Seamless Pipe Large Diameter
JIS G3459 SUS304 Stainless Steel Seamless Pipe Large Diameter
Yuhong Special Steel has been dealing in austenitic stainless steel and nickel alloy steel seamless welded pipes (Hastelloy, Monel, Inconel, Inkoloy) 25+ years selling steel pipes and tubes every year. Over 80,000 tons. Our customers have covered Italy, the United Kingdom, Germany, the United States, Canada, Chile, Colombia, Saudi Arabia, South Korea, Poland, Singapore, Australia, France, etc.
JIS G3459 stainless steel pipes are used for corrosion resistant pipes, different grades are suitable for low temperature and high temperature service, the manufacturing method can be cold working or hot working, so it can meet the requirements of a wide range of specific products to meet the needs of customer applications.
Description
| Description | ||
| Type: | tube | |
| Outer Diameter | 6-2500mm, (3/8"-100") | |
| Thickness | 0.3-150mm,(SCH10-XXS) | |
| Length: | 2000mm, 2500mm, 3000mm, 5800mm, 6000mm,12000mm, etc | |
| Standard: | ASTM,AISI,JIS,,GB, DIN,,EN | |
| Surface: | BA,2B,NO.1,NO.4,4K,HL,8K | |
| Application: | It is widely used in high-temperature and electric industry, medical devices, construction, chemistry, food industry, agriculture, and ship components.It also applies to food and beverage packaging, kitchen supplies, trains, aircraft, conveyor belts, vehicles, bolts, nuts, springs, and screen mesh etc. | |
| Certification: | ISO, SGS,BV | |
| Technique: | Cold Drawn Seamless Tube / Welded pipe | |
| Edge: | Mill Edge Slit Edge | |
| Quality: | SGS Inspection | |
| Grade (ASTM UNS) | 201,304,304L,321,316,316L,317L,347H,309S,310S,904L,S32205,2507,254SMOS,32760,253MA,N08926 | |
| Grade (EN) | 1.4301,1.4307,1.4541,1.4401,1.4404,1.4571,1.4438,1.4539,1.4547,1.4529,1.4562,1.4410,1.4878,1.4845,1.4828,1.4876,2.4858,2.4819 | |
| Main market: | Asia/Europe/ South America | |
| Supply Ability: | 5000 Ton/Tons per Month | |
Chemical Composition:
| Grade | Chemical composition | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| C | Si | Mn | P | S | Ni | Cr | Mo | Others | |
| SUS 304 HTP | 0.04~0.10 | 0.75max. | 2.00 max. | 0.040 max. | 0.030 max. | 8.00~11.00 | 18.00~20.00 | - | - |
| SUS 309 STP | 0.08 max. | 1.00 max. | 2.00 max. | 0.040 max. | 0.030 max. | 12.00~15.00 | 22.00~24.00 | - | - |
| SUS 310 TP | 0.15 max. | 1.50 max. | 2.00 max. | 0.040 max. | 0.030 max. | 19.00~22.00 | 24.00~26.00 | - | - |
| 0.08 max. | 1.50 max. | 2.00 max. | 0.040 max. | 0.030 max. | 19.00~22.00 | 24.00~26.00 | - | - | |
| SUS 316TP | 0.08 max. | 1.00 max. | 2.00 max. | 0.040 max. | 0.030 max. | 10.00~14.00 | 16.00~18.00 | 2.00~3.00 | - |
| SUS 316HTP | 0.04~0.10 | 0.75 max. | 2.00 max. | 0.030 max. | 0.030 max. | 11.00~14.00 | 16.00~18.00 | 2.00~3.00 | - |
| SUS 316LTP | 0.030 max. | 1.00 max. | 2.00 max. | 0.040 max. | 0.030 max. | 12.00~16.00 | 16.00~18.00 | 2.00~3.00 | - |
| SUS 316HTP | 0.04~0.10 | 0.75 max. | 2.00 max. | 0.030 max. | 0.030 max. | 11.00~14.00 | 16.00~18.00 | 2.00~3.00 | - |
| SUS 316TiTP | 0.08 max. | 1.00 max. | 2.00 max. | 0.040 max. | 0.030 max. | 10.00~14.00 | 16.00~18.00 | 2.00~3.00 | Ti 5XC % min. |
Mechanical properties:
| Grade | Tensile strength | Proof stress | Elongation % | |||
|---|---|---|---|---|---|---|
| kgf/mm2 {N/mm2} | kgf/mm2 {N/mm2} | No. 11 test piece No. 12 test piece |
No.5 test piece | No.4 test piece | ||
| Longitudinal direction | Transverse direction | Longitudinal direction | Transverse direction | |||
| SUS 304TP | 53{520}min. | 21{206} min | 35 min | 25 min | 30 min | 22 min |
| SUS 304HTP | 53{520}min. | 21{206} min | 35 min | 25 min | 30 min | 22 min |
| SUS 304LTP | 49{481}min. | 18{177} min | 35 min | 25 min | 30 min | 22 min |
