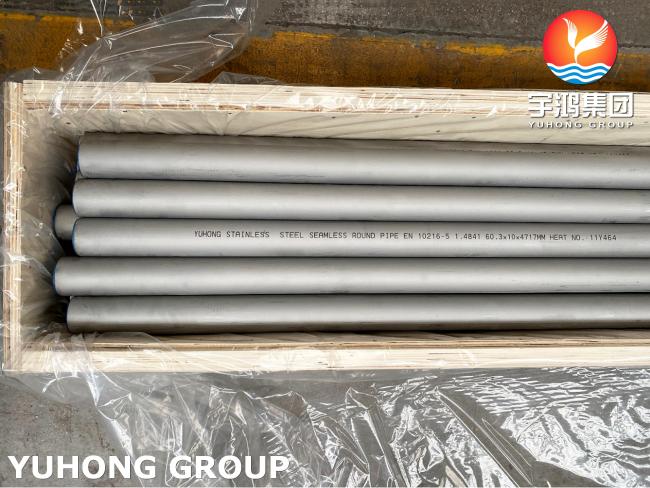

EN10216-5 1.4841 / X15CrNiSi25-21 / AISI 314 High Alloy Austenitic Heat-Resistant Stainless Steel pipe for industrial furnace
EN10216-5 1.4841 / X15CrNiSi25-21 / AISI 314 High Alloy Austenitic Heat-Resistant Stainless Steel pipe for industrial furnace
DIN1.4841 is a fully austenitic stainless steel grade. It is a good heat resisting grade with excellent corrosion resistance. Usually, these are ideal for high heating applications due to its goods thermal stability. A common feature of high-temperature SS that is designed for use in temperature more than 500 degree C. Below this temperature range, creep strength is the fundament for the dimensioning factor. Designing steels for high-temperature applications tend them to resistance to oxidation. As it is an austenitic grade, resulting in good creep strength.
Stainless Steel DIN 1.4841 pipe is processed from heat treatment process due to good temperature stability even at high temperatures. Primarily, it is used wherever high mechanical strength is required. Machining stress is removed by the stress relieving process. This operation is done to remove distortion and elongation. This grade is resistant to scaling in oxidizing environments. It also shows certain sensitivity at reducing chemicals such as chlorides, sulfides, and harsh acids. These SS tubes are leakage proof even in pressurizing applications. These are also formable into any complex shapes with conventional machines.
Key Advantages of EN 10216-5 1.4841 Stainless Steel Seamless Pipe
-
Excellent high-temperature performance for continuous service up to 1150 °C.
-
Superior oxidation and scaling resistance in extreme heat environments.
-
High creep strength under long-term pressure and high temperature.
-
Good carburization and corrosion resistance for harsh industrial conditions.
-
Reliable seamless quality complying with EN 10216-5 for pressure applications.
Chemical Composition of EN10216-5 1.4841 / X15CrNiSi25-21 / AISI 314
| Chemical element | C | Si | Mn | Cr | Ni | P | S | Fe |
|---|---|---|---|---|---|---|---|---|
| % | ≤0.15 | 1.5–2.5 | ≤2.0 | 24–26 | 19–22 | ≤0.045 | ≤0.03 | margin |
Mechanical Properties of EN10216-5 1.4841 / X15CrNiSi25-21 / AISI 314
| Grade |
DIN 1.4841 |
|
|---|---|---|
| Tensile Strength (MPa) min | 515 | |
| Yield Strength 0.2% Proof (MPa) min | 205 | |
| Elongation (% in 50mm) min | 40 | |
| Hardness | Rockwell B (HR B) max | 95 |
| Brinell (HB) max | 217 | |
Physical Properties of EN10216-5 1.4841 / X15CrNiSi25-21 / AISI 314
|
Grade |
DIN 1.4841 |
|
|---|---|---|
|
Density (kg/m3) |
7750 |
|
|
Elastic Modulus (GPa) |
200 |
|
|
Mean Coefficient of Thermal Expansion (m/m/0C) |
0-1000C |
15.9 |
|
0-3150C |
16.2 |
|
|
0-5380C |
17.0 |
|
|
Thermal Conductivity (W/m.K) |
at 1000C |
14.2 |
|
at 5000C |
18.7 |
|
|
Specific Heat 0-1000C (J/kg.K) |
500 |
|
|
Electrical Resistivity (n.m) |
720 |
|
Equivalent Grades of EN10216-5 1.4841
| Standard System | Grade / UNS Number |
|---|---|
| EN (Europe) | 1.4841, X15CrNiSi25-21 |
| ASTM / AISI (USA) | AISI 314, UNS S31400 |
| GB (China) | S38340, 16Cr25Ni20Si2 (formerly 1Cr25Ni20Si2) |
| JIS (Japan) | SUH 310 |
| BS (UK) | 314S25 |
| AFNOR (France) | Z15CNS25-20 |
Applications of EN10216-5 1.4841 pipes
- Boilers, superheaters and reheaters
- High-temperature furnaces, radiant tubes, muffle furnaces
- Petrochemical cracking furnaces and reformer tubes
- Heat exchangers and high-temperature pressure piping
- Flue gas systems, incinerators and kilns
- Components requiring excellent oxidation resistance at temperatures up to around 1150 °C
