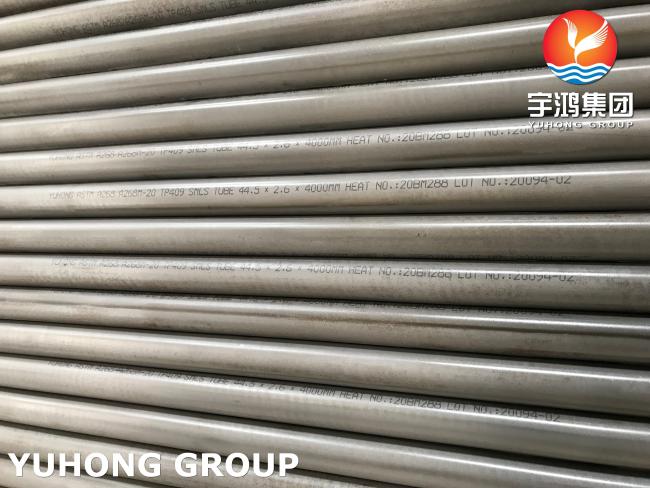

Ferritic Martensitic Seamless Tube ASTM A268 TP409 1.4512 S40900
Ferritic Martensitic Seamless Tube ASTM A268 TP409 1.4512 S40900
This specification covers a number of grades of nominal-wall-thickness, stainless steel tubing for general corrosion-resisting and high-temperature service. Most of these grades are commonly known as the “straight-chromium” types and are characterized by being ferromagnetic.
The tubes shall be made by the seamless or welded process with no filler metal added, tubes shall be reheated to a temperature of 1200.F [650.C] or higher and cooled to meet the requirements of this specification, All tubes shall be free of excessive mill scale, suitable for inspection. A slight amount of oxidation will not be considered as scale.
Grade 409 stainless steel is a Ferritic steel that offers good mechanical properties and high-temperature corrosion resistance. It is commonly considered as a chromium stainless steel, with applications in exhaust systems of automobiles and applications that demand weldability.
TP409 stainless grade combines the following characteristics:
-Basic corrosion and oxidation resistance
-Composition balanced for optimum formability
-Weldable only in thin sections due to fully ferritic structure
-Low cost and limited cost variation due to low alloy content
Chemical Composition
| Grade | C | Si | Mn | P | S | Cr | Ni | Ti |
| TP409 | 0.08 max | 1.00 max | 1.00 max | 0.045 max | 0.030 max | 10.5~11.7 | 0.5 max | 6*C min, 0.75 max |
SS409 Tubing Tolerance
|
Stainless Steel 409 Tube OD
|
Stainless Steel 409 Tube Tolerance
|
|---|---|
|
4mm to 35mm
|
+/- 0.08mm
|
|
35mm to 38mm
|
+/- 0.15mm
|
|
38mm to 60mm
|
+/- 0.20mm
|
|
60mm and above
|
+/- 0.25mm
|
Equivalent Material
|
STANDARD |
WERKSTOFF NR. |
UNS |
JIS |
KS |
|
TP409 |
1.4512 |
S40900 |
SUS409 |
STS409 |
Mechanical Properties
| Grade | Tensile strength | Yield strength | Elongation |
| TP409 | 380 | 170 | 20 |
Physical Properties
| Grade | Density (kg/m3) | Elastic Modulus (GPa) | Mean Coefficient of Thermal Expansion (μm/m/°C) | Thermal Conductivity (W/m.K) | Specific Heat 0-100°C (J/kg.K) | Electrical Resistivity (nΩ.m) | |||
| 0-100°C | 0-315°C | 0-538°C | at 100°C | at 500°C | |||||
| TP409 | 7800 | 200 | 11.0 | 11.7 | 12.4 | 25.8 | 27.5 | 460 | 600 |
Applications
-Aerospace – piston engine manifolds
-Chemical Processing
-Expansion Joints
-Food Processing – equipment and storage
-Petroleum Refining – polythionic acid service
-Waste Treatment – thermal oxidizers
