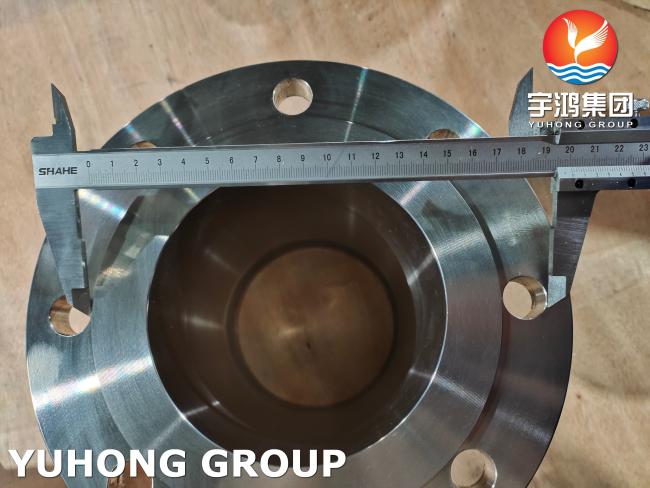

Stainless Steel Flange ASTM B366 C276 UNS NO 10276 Gas Heat Exchangers Food
ASTM B366 C276 UNS NO 10276 Flange For Gas Heat Exchangers Food Processing
YUHONG GROUP deal with steel pipe fittings already more than 33 years. Our client already cover more than 70 countries, Like Italy, UK, Gernmany, USA, Canada, Chile, Colombia, Saudi Arabia, Korea, Singapore, Austrial, Poland, France ...
Chemical Composition of ASTM B366 C276 Flanges
| C | Co | Cr | Fe | Mn | Mo | Ni | P | S | Si | V | W |
| Max | Max | Max | Max | Max | Max | Max | |||||
| 0.01% | 2.5% | 14.5 – 16.5% | 4 – 7% | 1.0% | 15 – 17% | BAL | .04% | 0.03% | 0.08% | 0.35% | 3 – 4.5% |
Mechanical Properties of ASTM B366 C276 Flanges
| Density | 8.89 g/cm3 |
| Melting Point | 1370 °C (2500 °F) |
| Tensile Strength | Psi – 1,15,000 , MPa – 790 |
| Yield Strength (0.2%Offset) | Psi – 52,000 , MPa – 355 |
| Elongation | 40 % |
High nickel and molybdenum content
Resistant to localised corrosion
The corrosion resistance of Werkstoff No. 2.4819 alloy C276 forged fittings extends to strong solutions of wet chlorine gas, hypochlorite and a number of other corrosive chemicals, including oxidising salts such as ferric chloride and copper chloride. In fact, alloy C-276 butt-weld elbows are a tubing with excellent resistance to oxidising atmospheres up to 1040°C, while allowing the direction of the medium to be changed. In addition to being used in the chemical processing industry, alloy C276 butt-weld fittings are used in flue gas desulphurisation plants, petrochemical plants, critical components for waste water treatment, waste incineration and in difficult areas such as acid gas production and organic acid processing.
Application
Oil and Gas
Pulp and paper production
Waste treatment
High Temperature Application
Pharmaceutical and food processing equipment
