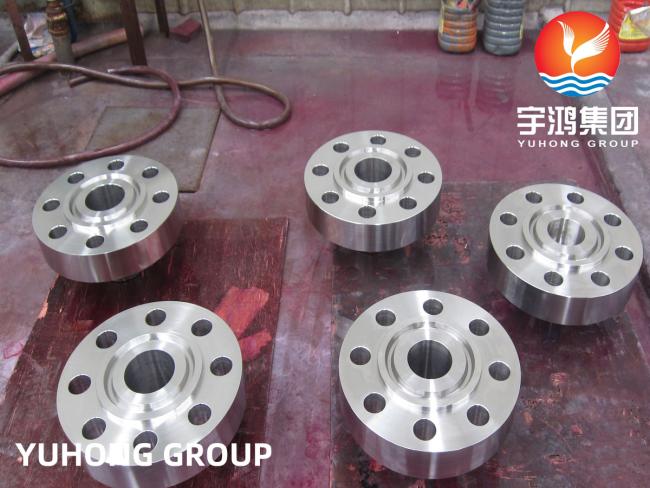

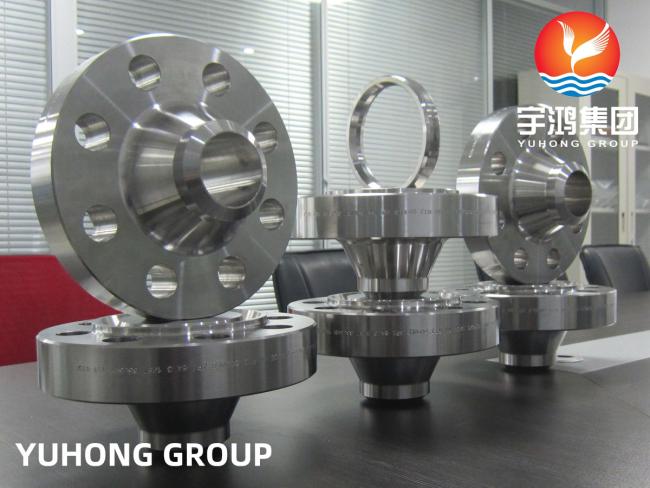

ASTM B564 NO6625 Nickel Alloy Steel Flanges Bridas
ASTM B564 NO6625 Nickel Alloy Steel Flanges Bridas
YUHONG supplies ASTM B564 NO6625 Nickel Alloy Steel Flanges, this flange has many features:
Corrosion resistant
Accurate dimensions
Can sustain high pressure & temperature load
Rust proof finish
Smooth transition from flange thickness to pipe
Ensure excellent stress distribution
Inconel 625 is a corrosion and oxidation resistant nickel alloy that is used both for its high strength and outstanding aqueous corrosion resistance. Its outstanding strength and toughness is due to the addition of niobium which acts with the molybdenum to stiffen the alloy’s matrix.
Alloy 625 has excellent fatigue strength and stress-corrosion cracking resistance to chloride ions. This nickel alloy has excellent weldability and is frequently used to weld AL-6XN. This alloy resists a wide range of severely corrosive environments and is especially resistant to pitting and crevice corrosion.
Specification Of ASTM B564 NO6625
| Type | WN Flange,SO Flange, SW Flange, Blind Flange,Threaded Flange,etc |
| Standard | ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, etc. |
| Size | 1/2″ to 48″NB |
| Class / Pressure | 150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64 etc. |
| Flange Face Type | Flate Face (FF), Raised Face (RF), Ring Type Joint (RTJ) |
| Flange Delivery Condition | As Rolled, Normalizing Rolled, Thermomechanical Rolled / Formed, Normalizing Formed, Normalized and Tempered / Quenched and Tempered - BR / N / Q /T, Machined |
| Flange Dimension Standard | Standard - ANSI - ANSI B16.5, ANSI B16.47, MSS SP44, ANSI B16.36, and ANSI B16.48 |
| Other Testing | NACE MR0175, NACE TM0177, NACE TM0284, CHARPY V-NOTCH TEST, RADIOGRAPHIC EXAMINATION, XRAY, ULTRASONIC EXAMINATION, LIQUID PENETRANT, MAGNETIC PARTICLE, HIC TEST, SSC TEST, SWC, H2 SERVICE, IBR, PWHT etc. |
| Flange Value Added Service | Draw / Expansion / Machining / Sand Blasting / Shot Blasting / Galavanizing / Heat Treatment |
| Coating Flanges Face | Zinc Plated, Yellow Transparent, Anti-rust Paint, Cold and Hot Dip Galvanized, Oil Black Paint |
| Flange Packaging | Loose / Bundle / Wooden Pallet / Wooden Box / Plastic Cloth Wraps / Plastic End Caps / Beveled Protector |
Chemical Composition Of ASTM B564 NO6625
| ELEMENT | COMPOSITION (%) |
| Carbon | 0.10 max |
| Manganese | 0.50 max |
| Sulfur | 0.015 max |
| Silicon | 0.50 max |
| Iron | 5 max |
| Nickel | 58 min |
| Chromium | 20-23 |
Mechanical Properties Of ASTM B564 NO6625
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Inconel 625 | 8.4 g/cm3 | 1350 °C (2460 °F) | Psi – 1,35,000 , MPa – 930 | Psi – 75,000 , MPa – 517 | 0.425 |
Applications
Fabrication Industry
Water Pipeline Industry
Chemical Industry
Natural Gas Industry
Oil And Gas Industry
Nuclear Power Plant
Waste Incineration Industry
