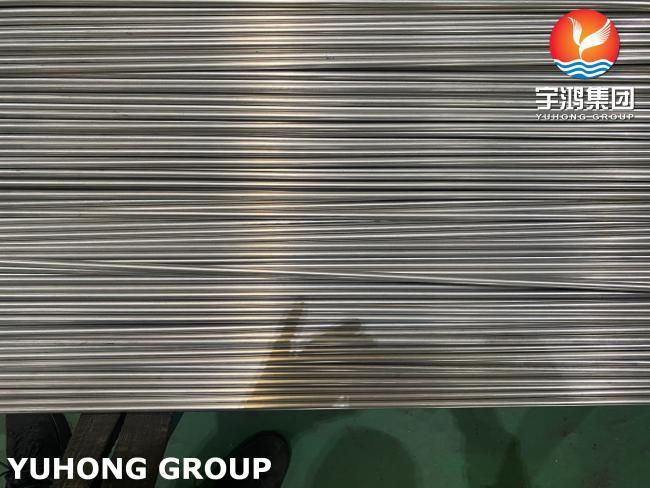

EN10305-1 E235 Seamless Cold Drawn Tubes Low Carbon Steel for Vessel Construction
EN10305-1 E235 Seamless Cold Drawn Tubes Low Carbon Steel for Vessel Construction
We are YUHONG GROUP , one of the biggest manufactures of stainless steel & duplex steel & alloy steel tubes and pipes in China. With development more than 33 years, we have accumulated a great many clients all around the world and Yuhong products also won the great praise among the customers.
Description
Grade E235 or as referred to as EN 1.0308 steel is a non-alloy carbon steel grade. Essentially, E235 is the chemical designation for the English standard. The EN 10294-1 Grade E235 is an unalloyed steel that is well suited for machining without the use of a heat treatment.
EN 10305-1 grade covers steel to produce precision piping grades. The EN 10305-1 Tube is designed with a chemical composition of carbon, silicon, manganese, phosphorus, and sulfur. This gives the EN 10305-1 Steel Tubes good strength and excellent tolerance to high temperatures and corrosive media in stress-induced environments. The EN 10305-1 Material is designed with a tensile strength between 340mpa up to 550mpa. They can be elongated by 22% in the system. Steel Tube EN 10305-1 grade can be precisely shaped in different sizes and dimensions to meet different project requirements. The versatile EN 10305-1 Pipe is widely used in transmission shafts, fuel injection pipes, power steering systems, boiler equipment, heat exchanger tubes, and so on.
Chemical Properties
| Pipe types | CHEMICAL COMPOSITION (LADLE ANALYSIS) | ||||||||||
| C% | Si% | Mn% | P% | S% | Cr% | Mo% | V% | Inne% | Cr+ Mo+ Ni Max% | Al.% | |
| E235 | <=0,17 | <=0,35 | <=1,20 | <=0,025 | <=0,025 | - | - | - | - | - | 0,020- 0,060 |
| E255 | <=0,21 | <=0,35 | 0,40-1,10 | <=0,025 | <=0,025 | - | - | - | - | - | 0,020- 0,060 |
| E355 | <=0,22 | <=0,55 | <=1,60 | <=0,025 | <=0,025 | - | - | - | - | - | 0,020- 0,060 |
Mechanical Properties
| Mechanical properties at room temperature | |||||||||||||
| Steel Grade | Minimum values for the delivery condition | ||||||||||||
| Steel Name | Steel Number | +C | +LC | +SR | +A | +N | |||||||
| Rm | A | Rm | A | Rm | ReH | A | Rm | A | Rm | ReH | A | ||
| Mpa | % | Mpa | % | Mpa | Mpa | % | Mpa | % | Mpa | Mpa | % | ||
| E215 | 1.0212 | 430 | 8 | 380 | 12 | 380 | 280 | 16 | 280 | 30 | 290 to 430 | 25 | 30 |
| E235 | 1.0308 | 480 | 6 | 420 | 10 | 420 | 350 | 16 | 315 | 25 | 340 to 480 | 235 | 25 |
| E355 | 1.058 | 640 | 4 | 580 | 7 | 580 | 450 | 10 | 450 | 22 | 490 to 630 | 355 | 22 |
Resistance Properties
| Pipe types | Steel grades | Resistance properties | |||||||||||
| +C | +LC | +SR | +A | +N | |||||||||
| Rm [MPa] | A% | Rm [MPa] | A% | Rm [MPa] | Re [MPa] | A% | Rm [MPa] | A% | Rm [MPa] | Re [MPa] | A% | ||
| Precision | E235 | 480 | 6 | 420 | 10 | 420 | 350 | 16 | 315 | 25 | 340- 480 | 235 | 25 |
| E235, | E255 | 580 | 5 | 520 | 8 | 520 | 375 | 12 | 390 | 21 | 440- 570 | 255 | 21 |
| E255, | E355 | 640 | 4 | 580 | 7 | 580 | 450 | 10 | 450 | 22 | 490- 630 | 355 | 22 |
| E355 | C34E | 590 | 5 | 540 | 7 | - | - | - | 440 | 22 | >= 460 | 280 | 21 |
| According to PN-EN 10305-1 | C45E | 720 | 4 | 670 | 6 | - | - | - | 510 | 20 | >= 540 | 340 | 18 |
Application
- Apparatus engineering
- Vessel construction
- Pipelines
- Mechanical engineering
- Tool-building
