ASTM B564 NO6600 Nickel Alloy Steel Flanges Bridas
ASTM B564 NO6600 Nickel Alloy Steel Flanges Bridas

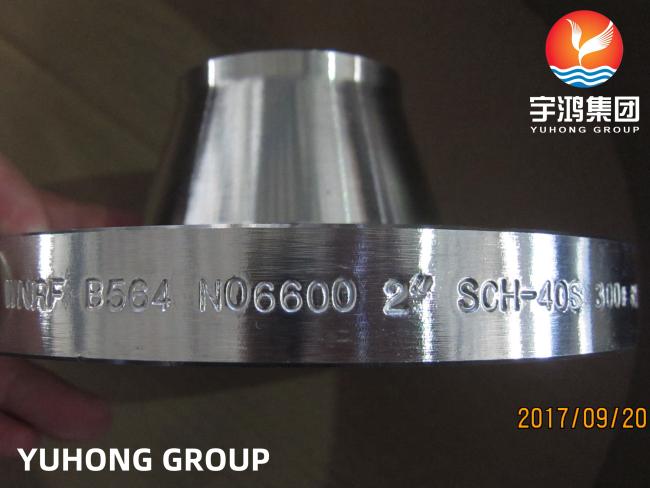

YUHONG supplies ASTM B564/ ASME SB564 NO6600 Nickel Alloy Steel Flanges.
Inconel 600 is a nickel-chromium alloy with good oxidation resistance at higher temperatures, with good resistance in carburizing and chloride containing environments.
And it is designed for use from cryogenic to elevated temperatures in the range of 2000 deg F(1093 deg C). The high nickel content of the alloy enables it to retain considerable resistance under reducing conditions and makes it resistant to corrosion by a number of organic and inorganic compounds. The nickel content gives it excellent resistance to chloride-ion stress-corrosion cracking and also provides excellent resistance to alkaline solutions.
Besides, Alloy 600 is non-magnetic, has excellent mechanical properties and a combination of high strength and good workability and is readily weldable. Inconel 600 exhibits cold forming characteristics normally associated with chromium-nickel stainless steels.
Specification Of ASTM B564 / ASME SB564 NO6600
| Type | WN / SO / SW / Plate / Blind Flange,etc |
| Standard | ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, etc. |
| Size | 1/2″ to 48″NB |
| Class / Pressure | 150#, 300#, 600#, 900#, 1500#, 2500#, etc. |
| Flange Face Type | Flate Face (FF), Raised Face (RF), Ring Type Joint (RTJ) |
| Flange Delivery Condition | As Rolled, Normalizing Rolled, Thermomechanical Rolled / Formed, Normalizing Formed, Normalized and Tempered / Quenched and Tempered - BR / N / Q /T, Machined |
| Flange Dimension Standard | Standard - ANSI - ANSI B16.5, ANSI B16.47, MSS SP44, ANSI B16.36, and ANSI B16.48 |
| Other Testing | NACE MR0175, NACE TM0177, NACE TM0284, CHARPY V-NOTCH TEST, RADIOGRAPHIC EXAMINATION, XRAY, ULTRASONIC EXAMINATION, LIQUID PENETRANT, MAGNETIC PARTICLE, HIC TEST, SSC TEST, SWC, H2 SERVICE, IBR, PWHT etc. |
| Flange Value Added Service | Draw / Expansion / Machining / Sand Blasting / Shot Blasting / Galavanizing / Heat Treatment |
| Coating Flanges Face |
Zinc Plated, Yellow Transparent, Anti-rust Paint, Cold and Hot Dip Galvanized, Oil Black Paint |
| Flange Packaging | Loose / Bundle / Wooden Pallet / Wooden Box / Plastic Cloth Wraps / Plastic End Caps / Beveled Protector |
Chemical Composition Of ASTM B564 / ASME SB564 NO6600
| ELEMENT | COMPOSITION (%) |
| Carbon | 0.15 max |
| Manganese | 1 max |
| Sulfur | 0.015 max |
| Silicon | 0.50 max |
| Iron | 6-10 |
| Nickel | 72 min |
| Chromium | 14-17 |
Mechanical Properties Of ASTM B564 / ASME SB564 NO6600
| Density | Tensile Strength | Melting Point | Yield Strength (0.2%Offset) | Elongation |
| 8.47 g/cm3 |
Psi – 95,000 MPa – 655 |
1413 °C (2580 °F) |
Psi – 45,000 MPa – 310 |
0.4 |
Applications
Fabrication Industry
Water Pipeline Industry
Chemical Industry
Waste Incineration Industry
Natural Gas Industry
Oil And Gas Industry
Nuclear Power Plant
