ASTM A815 S31803-W Steel Y Shape Tees Pipe Fittings
ASTM A815 S31803-W Steel Y Shape Tees Pipe Fittings

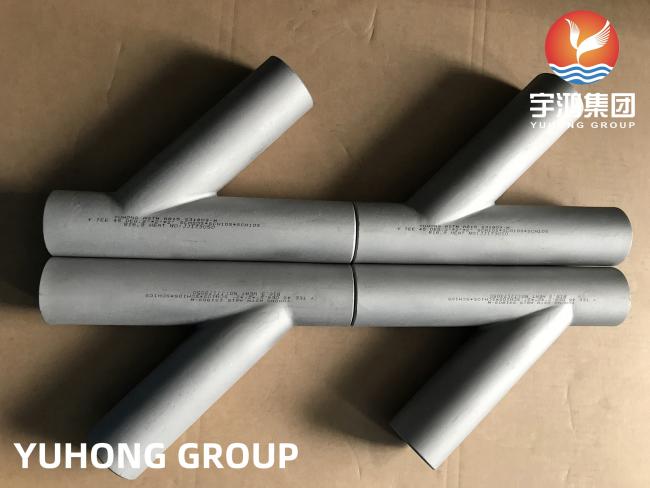

YUHONG supplies ASTM A815 S31803 duplex steel Y shape Tees. This duplex stainless steels are extremely corrosion resistant, work hardenable alloys.
Their microstructures consist of a mixture of austenite and ferrite phases. As a result, duplex stainless steels display properties characteristic of both austenitic and ferritic stainless steels.
The steel ASTM A815 S31803 has many features: Corrosion resistant, Accurate dimensions, Can sustain high pressure & temperature load, Rust proof finish, Smooth transition from flange thickness to pipe, Ensure excellent stress distribution,etc.
ASTM A815 S31803 -- Specification
| Type: | Butt Weld (BW), Seamless (SMLS) Welded,Fabricated |
| Coating Fitting Faces : | Zinc Plated, Yellow Transparent, Oil Black Paint, Anti-rust Paint, Cold and Hot Dip Galvanized |
| Fitting Machining Equipment: | Electric bevelling machine, Press machine, Bending machine, Pushing Machine, Sand-blasting machine etc |
| Thickness: | SCH 5S, SCH10S, SCH10, SCH20, SCH30, SCH40S, SCHSTD, SCHA0,SCH60,SCH80S, XS, SCH80, SCH100, SCH120, SCH140, SCH160,SACXXS |
| Bending Radius: | R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom |
| Check Sizes: | 1/2” NB TO 24” NB |
ASTM A815 S31803 -- Chemical Composition
| C | Cr | Ni | Si | Mn | P | Mo |
| 0.30 max | 21-23 | 4.5-6.5 | 1 max | 2 max | 0.03 max | 2.5-3.5 |
ASTM A815 S31803 -- Physical Property
| Density | Thermal Expansion | Modulus of Elasticity | Thermal Conductivity |
| 7.805 g/cm3 | 13.7 x10^-6 /K | 200 GPa | 19.0 W/m.K |
ASTM A815 S31803 -- Mechanical Property
| Proof Stress | Tensile Strength | Elongation A50 mm | Hardness Brinell |
| 450 Min MPa | 620 Min MPa | 25 Min % | 290 Max HB |
ASTM A234 WPB Tees -- Applications
Chemical processing, transport and storage
Oil and gas refining
Oil and gas exploration and offshore rigs
Marine environments
Pulp & paper manufacturing
Chemical process plant
Pollution control equipment
