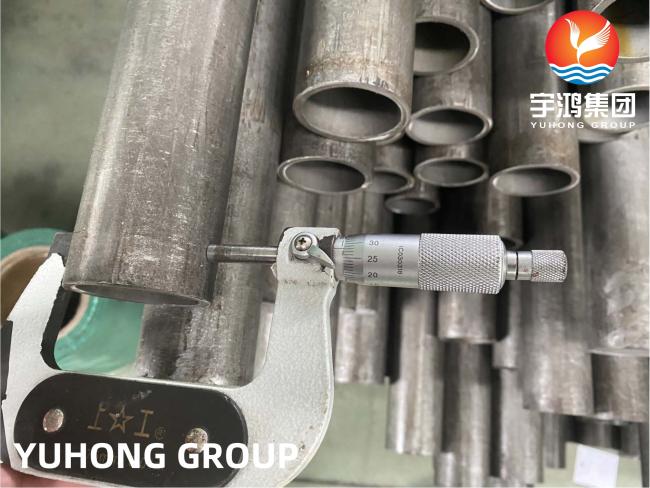

YUHONG supplies ASTM A192 seamless carbon steel boiler tube, and the tube of this standard is applied as minimum-wall-thickness.
ASTM A192 seamless carbon steel boiler tube has the ability to withstand high pressure along with having some resistance to corrosion as well as some level of hardness and toughness properties. In addition to this the A192 Boiler Tube has good tensile strength properties as well, thereby making them more popular in several industries. So, our carbon steel ASTM A192 Tubes can be used in demanding applications.
Tube Size
| Tube Sizes for Heat Exchangers & Condensers & Boiler | |||||||||||
|
Outside Diameter |
BWG | ||||||||||
| 25 | 22 | 20 | 18 | 16 | 14 | 12 | 10 | ||||
| Wall Thickness mm | |||||||||||
| 0.508 | 0.71 | 0.89 | 1.24 | 1.65 | 2.11 | 2.77 | 3.40 | ||||
| mm | inch | Weight kg/m | |||||||||
| 6.35 | 1/4 | 0.081 | 0.109 | 0.133 | 0.174 | 0.212 | |||||
| 9.53 | 3/8 | 0.126 | 0.157 | 0.193 | 0.257 | 0.356 | 0.429 | ||||
| 12.7 | 1/2 | 0.214 | 0.263 | 0.356 | 0.457 | 0.612 | 0.754 | ||||
| 15.88 | 5/8 | 0.271 | 0.334 | 0.455 | 0.588 | 0.796 | 0.995 | ||||
| 19.05 | 3/4 | 0.327 | 0.405 | 0.553 | 0.729 | 0.895 | 1.236 | ||||
| 25.4 | 1 | 0.44 | 0.546 | 0.75 | 0.981 | 1.234 | 1.574 | 2.05 | |||
| 31.75 | 1 1/4 | 0.554 | 0.688 | 0.947 | 1.244 | 1.574 | 2.014 | 2.641 | |||
| 38.1 | 1 1/2 | 0.667 | 0.832 | 1.144 | 1.514 | 1.904 | 2.454 | 3.233 | |||
| 44.5 | 1 3/4 | 1.342 | 1.774 | 2.244 | 2.894 | 3.5 | |||||
| 50.8 | 2 | 1.549 | 2.034 | 2.574 | 3.334 | 4.03 | |||||
| 63.5 | 2 1/2 | 1.949 | 2.554 | 3.244 | 4.214 | 5.13 | |||||
| 76.2 | 3 | 2.345 | 3.084 | 3.914 | 5.094 | 6.19 | |||||
| 88.9 | 3 1/2 | 2.729 | 3.609 | 4.584 | 5.974 | 7.27 | |||||
| 101.6 | 4 | 4.134 | 5.254 | 6.854 | 8.35 | ||||||
| 114.3 | 4 1/2 | 4.654 | 5.924 | 7.734 | 9.43 | ||||||
| Form of Tube: Straight & U-bend & Finned & Coiled | |||||||||||
Chemical Composition Of ASTM A192 Tube
| Chemical Composition | C | Mn | P | S | Si |
| 0.06-0.18 | 0.27-0.63 | 0.035 max | 0.035 max | 0.25 max |
Mechanical Property Of ASTM A192 Tube
| Yield Strength (Mpa) | Tensile Strength (Mpa) | Elongation (%) | BrinellHardness Number(WT≥)0.200In(5.1mm) | Rockwell Hardness Number (WT)0.200In(5.1mm) |
| ≥180 | ≥325 | ≥35 | 137HRB | 77HRB |
Mechanical Tests Required
Flattening Test / Flaring Test / Hardness Test / Hydrostatic Test / Tension Test
Applications Industry
Off-Shore Oil Drilling Companies / Chemical Equipment / Power Generation / Pharmaceuticals
Petrochemicals / Heat Exchangers / Gas Processing / Condensers / Sea Water Equipment
Specialty Chemicals / Pulp and Paper Industry / Pharmaceutical Equipment
