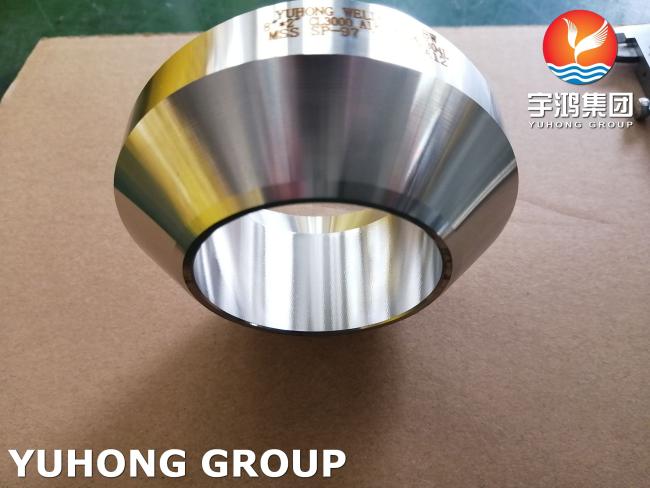

Forged Fittings, ASTM A182 F304, F304L Stainless Steel NPT Weldolet Class3000 MSS SP-97
Forged Fittings, ASTM A182 F304, F304L Stainless Steel NPT Weldolet Class3000 MSS SP-97
ASTM A182 F304, F304L Stainless Steel Weldolets are balanced Austenitic Steel that are widely applied and versatile in wide spectrum of products, finishes, and forgings. The chemical composition, weldability, oxidation, mechanical properties, and corrosion resistance allow this Austenitic Steel to perform better at relatively low cost. Weldolets are the most common of all branch connections, and they are welded onto the outlet pipe. The ends are bevelled to facilitate this process, so the weldolet is considered as a butt-weld fitting. Weldolets are used to minimize stress concentrations and to provide integral reinforcement.
Characteristics:
Durability
Corrosion resistance
Abrasion resistance
Dimensional accuracy
Chemical Composition:
| C | Mn | Si | P | S | Cr | Ni |
| 0.03 | 2 | 0.75 | 0.045 | 0.03 | 18-20 | 8-10.5 |
Mechanical Properties:
| Tensile Strength(Mpa) | Yield Strength(Mpa) | Elongation(%) |
| 515 | 205 | 40 |
Applications:
Power Plant
Fertilizers Equipment
Shipbuilding Equipment
Oil and Gas Pipeline
Water Supply Systems
Paper & Pulp Industry
Fabrication Industry
Food Processing Industry
Chemical&Petrochemical Industry
