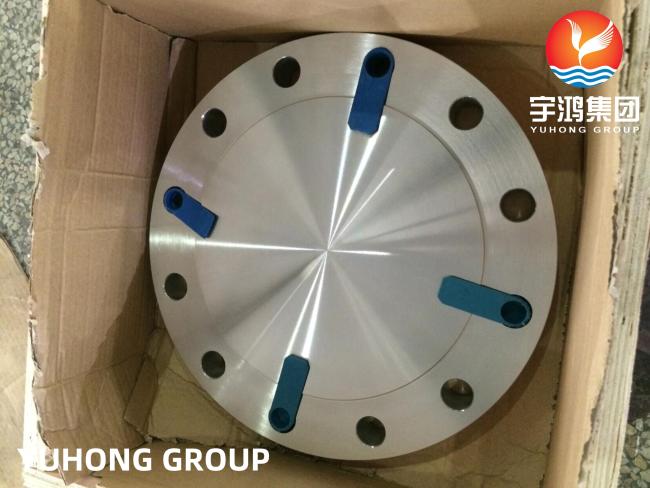

Stainless Steel Flange ASTM A182 F317 Petrochemicals and acids Nuclear power Oil
ASTM A182 F317 Stainless Steel Flange Petrochemicals and acids Nuclear power
YUHONG GROUP deal with steel pipe fittings already more than 33 years. Our client already cover more than 70 countries, Like Italy, UK, Gernmany, USA, Canada, Chile, Colombia, Saudi Arabia, Korea, Singapore, Austrial, Poland, France ...
What is the SS flange?
Stainless steel flange is a common pipeline connector, which is widely used in various industrial fields, including petroleum, chemical, food processing, pharmaceutical and so on. As an important part of the piping system, stainless steel flanges take on the function of connecting, sealing and supporting the pipeline. Stainless steel flanges consist of two interconnected ring-shaped parts that are bolted together. Each of these two ring-shaped parts is known as a flange, and they usually have a hole in the center for connecting pipes. The design and structure of stainless steel flanges can be adapted to suit the requirements of different piping systems.
Chemical Composition of A182 F317 Flanges
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | Fe |
| SS 317 | 0.08 max | 2 max | 1.00 max | 0.045 max | 0.030 max | 18.00 – 20.00 | 3.00 – 4.00 | 11.00 – 15.00 | 57.845 min |
Mechanical Properties of A182 F317 Flanges
| Grade | Tensile Strength | Melting Point | Yield Strength (0.2%Offset) | Density | Elongation |
| 317/317L | Psi – 75000 , MPa – 515 | 1400 °C (2550 °F) | Psi – 30000 , MPa – 205 | 7.9 g/cm3 | 35 % |
Equivalent Grades of A182 F317 Flanges
| STANDARD | WERKSTOFF NR. | UNS | JIS | EN |
| SS 317 | 1.4449 | S31700 | SUS 317 | – |
| SS 317L | 1.4438 | S31703 | SUS 317L | X2CrNiMo18-15-4 |
Alloy 317 flange is an austenitic chromium-nickel stainless steel with excellent corrosion resistance.The high molybdenum content of ASME SA182 SS 317 flange enhances the grade's excellent resistance to pitting. It is the most corrosion resistant of the 300 series alloys and has the highest tensile and creep strength properties at elevated temperatures.
Application
Oil
Gas
Petrochemical
Power Generation
