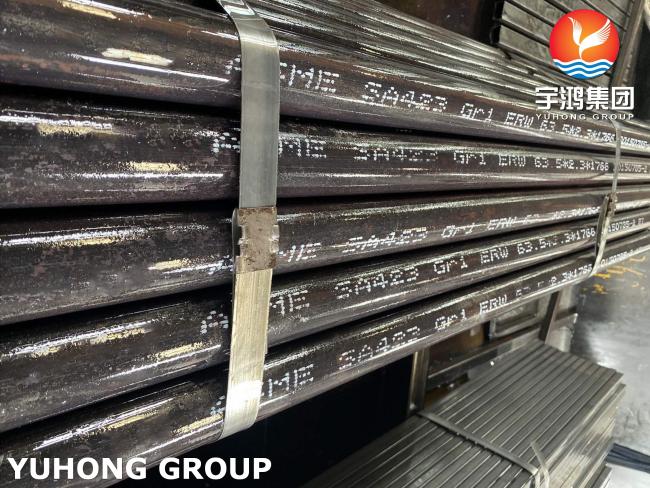

ASTM A423 Gr 1 Carbon Steel Pipe Oil Gas Chemical Heating Power Plants Boiler
ASTM A423 Gr 1 Carbon Steel Pipe Oil Gas Chemical Heating Power Plants
Abstract of ASTM A423 Gr 1
ASTM A423 Grade 1 pipe is a grade of carbon steel known as weathering steel. The material is characterised by the formation of an oxide layer when exposed to harsh weather conditions. The oxide layer that forms on the surface is known as copper green. Once the oxide layer has formed, it resists contact with the atmosphere, so the core of the material remains free from corrosion for an extended period of time. This is also known as Corten Steel GR.1 ERW Pipe and it is used in open weather. Most outdoor systems exposed to the weather use this type of pipe.
Chemical Composition of ASTM A423 Gr 1
| Grade | C | Si | Mn | P | S | Cr | Cu | V | Ni |
| COR-TEN A | 0.12 | 0.25-0.75 | 0.20-0.50 | 0.07-0.15 | 0.03 | 0.50-1.25 | 0.25-0.55 | - | 0.65 |
| COMPOSITION | Grade 1 | Grade 2 |
| Carbon, max | 0.15 | 0.15 |
| Manganese, max | 0.55 | 0.50–1.00 |
| Phosphorus | 0.06–0.16 | 0.04 max |
| Sulfur, max | 0.060 | 0.05 |
| Silicon, min | 0.10 | … |
| Copper | 0.20–0.60 | 0.30–1.00 |
| Chromium | 0.24–1.31 | … |
| Nickel | 0.20–0.70 | 0.40–1.10 |
| Molybdenum, min | … | 0.10 |
Mechanical Properties of ASTM A423 Gr 1
| Grade | Minimum yield point ReH Mpa *) | Tensile strength Rm MPa | Minimum elongation A (Lo=5.65 √So) % |
| COR-TEN A | 355 | 470-630 | 20 |
Applications
Oil & Gas
Chemical
heating
Power Plant
